Understanding Precision Metal Lathes
A precision metal lathe is an indispensable tool in metalworking, serving as the backbone for a myriad of machining operations. Essential for shaping metal into precise components, these machines are fundamental in fields ranging from automotive to aerospace engineering.
Core Components of a Metal Lathe:
- Spindle: The heart of the lathe, the spindle holds the workpiece in place and rotates it at various speeds, enabling material removal. The spindle’s capacity is crucial as it determines the maximum size of the workpiece the lathe can handle.
- Bed: The bed is the base of the lathe, providing support for the other components such as the tailstock and carriage. Precision-ground beds ensure optimal stability and minimal vibration during machining.

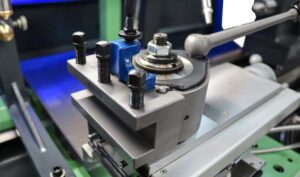

- Carriage: Moving along the bed, the carriage holds and moves the cutting tool across the workpiece. It includes several sub-components such as the saddle, cross-slide, and compound rest, which allow for precise tool positioning and movement in multiple axes.
- Tailstock: Positioned opposite the spindle, the tailstock provides additional support for longer workpieces. It can also hold tools such as drills and reamers for operations like drilling and tapping.
- Chuck: Attached to the spindle, the chuck secures the workpiece with jaws. Chucks can be of various types, including three-jaw (self-centering) or four-jaw (independently adjustable), catering to different workpiece geometries.
Advanced Features in Modern Lathes:
- Variable Speed Controls: Modern lathes offer variable spindle speeds, allowing operators to adjust the cutting speed based on material type and cutting conditions, optimizing the machining process for efficiency and surface finish.
- Digital Readouts (DROs): DROs provide precise feedback on the tool’s position relative to the workpiece. This feature enhances accuracy, reduces setup time, and minimizes errors, crucial for achieving tight tolerances in precision machining.
- Turret: In more sophisticated models, a turret replaces the tailstock, which can hold multiple tools and rotate them into position, significantly reducing the time needed for tool changes.
- Thread Cutting Capabilities: Advanced lathes come equipped with gearing options that enable the cutting of a wide range of thread types and sizes, essential for creating specific screw threads for various applications.
Precision and Tolerances: Precision lathes are designed to achieve extremely tight tolerances, often down to thousandths of an inch or a few micrometers. This level of precision is crucial for creating parts that fit and function correctly in assemblies where minute discrepancies can lead to failure.
Conclusion: Understanding the functionality and capabilities of precision metal lathes is crucial when considering the right equipment for your specific machining needs. By offering precise control over cutting operations and accommodating a range of materials and sizes, these lathes are not just tools but vital partners in the art of metalworking.
