Motorised Portal Roll Frame Press 100 Tons • Wide Model
Product Code: 20061The PPTL-100-1500 Roll Frame Portal Press is built for efficient and precise metalworking applications, offering a high pressing force of 981 kN with an extended 1500 mm working width. This portal press is specifically engineered to handle tasks like straightening, bending, and assembling large and heavy components. Its manually movable portal and movable cylinder (left-right) provide optimal flexibility, enabling the operator to easily align the press for precision tasks, while heavy workpieces can be positioned on the table using a crane, making operations easier and safer.
Equipped with a hydraulic unit featuring two-speed options, an integrated pressure manometer, and pressure regulation, this portal press delivers precision and adaptability across various jobs. It includes a joystick/directional control valve for smooth cylinder movement, as well as a hand pump for fine control, allowing for accurate adjustments during intricate operations.
Directly available from our stock in the Netherlands, the PPTL-100-1500 can also be customized to your requirements. Whether you need a longer piston stroke, more clearance between the piston and table, or other modifications, we can tailor the press to fit your needs.
Please contact for prices
- Description
- Additional Info
The PPTL-100-1500 Roll Frame Portal Press is an advanced hydraulic press designed for heavy-duty applications with an extended working width of 1500 mm and a pressing force of 981 kN. Featuring a manually movable portal and a movable cylinder, it provides optimal flexibility and positioning, making it perfect for precision-driven tasks. Manufactured exclusively in Europe, this portal press is ideal for various metalworking and fabrication processes, delivering consistent performance and reliability even in demanding environments. The extended working width allows easy access to larger workpieces, enhancing versatility for a wider range of projects.
Technical Specifications
- Pressure force [kN]: 981
- Motor power [kW]: 2.2
- Working speed [mm/sec]: 2.47
- Approaching speed [mm/sec]: 7.54
- Return speed [mm/sec]: 9.06
- Maximum pressure [bar]: 258
- Piston stroke [mm]: 380

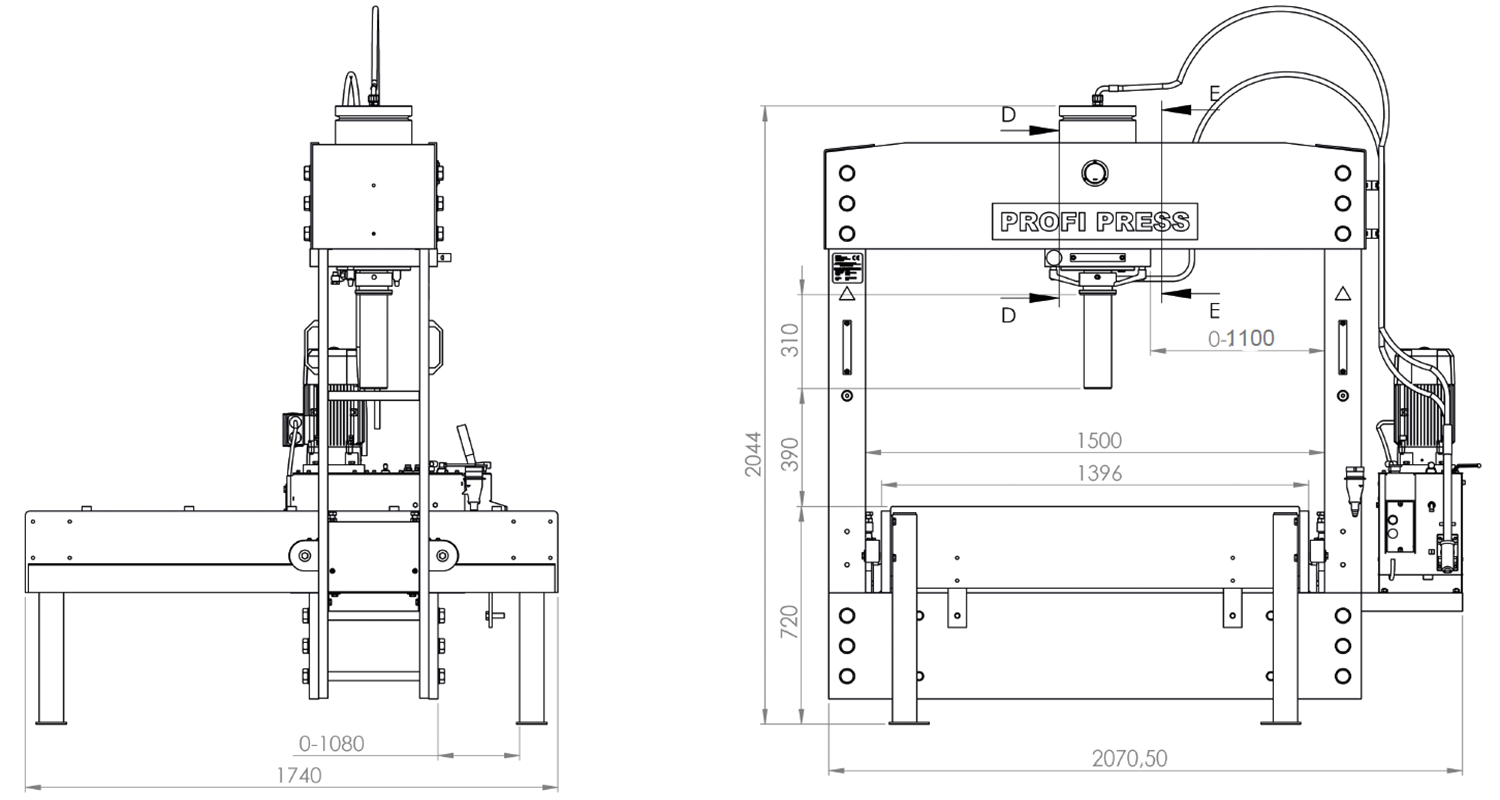

- Table size (L x W) [mm]: 1740 x 1396
- Vertical light [mm]: 700
- Working height [mm]: 720
- Manually movable cylinder and frame
- Total height [mm]: 2044
- Total length [mm]: 1740
- Total width [mm]: 2070
- Weight [kg]: 2060 kg
Features
- Manually movable portal for flexible positioning
- Movable cylinder (left-right) to reach various workpoints
- Cylinder extension to reach the table
- Integrated pressure manometer for monitoring
- Pressure regulation for precision control
- Hydraulic unit with two-speed operation for versatile use
- Joystick/directional control valve for cylinder movement
- Hand pump for detailed and precise press work
- Made exclusively in Europe
- 2-year warranty
- Built in the EU
- CE Certified
- Suitable for straightening, bending, and assembly tasks
- Heavy material handling facilitated by crane access and movable portal
Optional Accessories
- 1 Phase Motor (50 or 60 Hz)
- 60 Hz motor (1 or 3 Phase)
- 1 Phase Motor
- Geometry adapted to your requirements
- V-Blocks
- Press Brake Attachments
- Adjustable Pressing Plates
- Die Sets
- Hydraulic Foot Pedal Control
- Extended Cylinders
- Piston Attachments
- Digital Pressure Gauge
- Custom Table Plates
Industries and Thier Uses
- Automotive: Straightening large chassis components and assembling heavy-duty parts
- Manufacturing: Bending and shaping large metal sheets and profiles for machinery parts
- Construction: Forming and assembling oversized structural components
- Shipbuilding: Straightening large metal frames and fittings
- Aerospace: Adjusting and assembling larger precision metal parts
100-ton hydraulic Roll Frame Portal Press with manually movable portal and a 1500 mm working width. Built in Europe for maximum reliability and performance, featuring an extended table and precise cylinder control.
