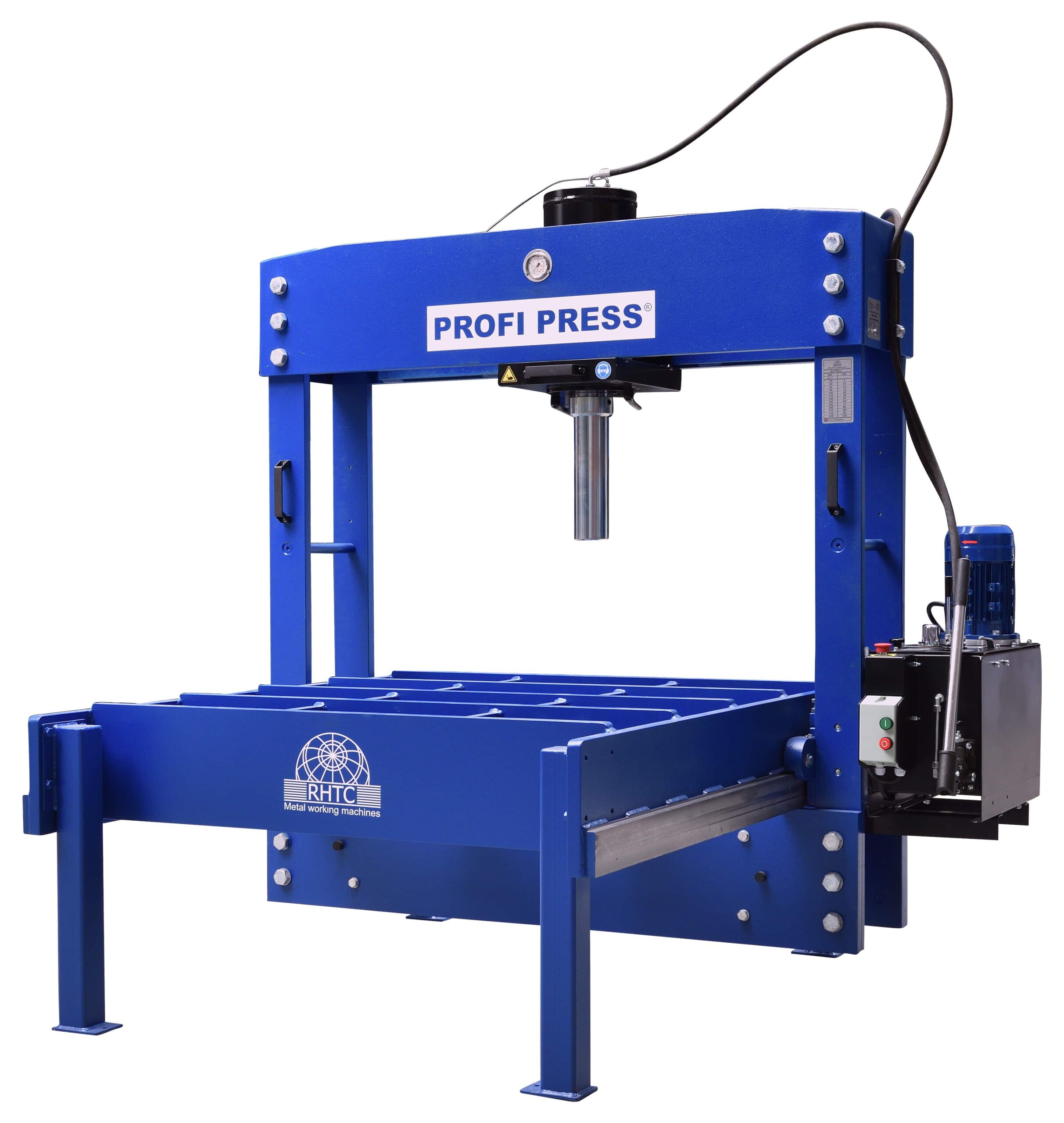

Motorised Portal Roll Frame Press 160 Tons • Wide Model
Product Code: 20085The PPTL-160-1500 Roll Frame Portal Press is specifically built to tackle the most challenging metalworking tasks, offering a significant pressing force of 1570 kN and an extended 1500 mm working width. This hydraulic press is ideal for operations such as straightening, bending, and assembling large and heavy components. The manually movable portal and movable cylinder (left-right) provide maximum flexibility, allowing for easy positioning over the workpiece for precise applications. This functionality is crucial for projects involving heavy materials, which can be efficiently positioned on the table using a crane.
Equipped with an integrated pressure manometer, pressure regulation, and a hydraulic unit featuring two-speed options, the PPTL-160-1500 offers both precision and versatility. It also includes a joystick/directional control valve for smooth cylinder operation and a hand pump for fine-tuning press work. Available directly from our stock in the Netherlands, this portal press can also be customized to meet specific requirements, whether you need a larger table, a longer piston stroke, or additional clearance.
Please contact for prices
- Description
- Additional Info
The PPTL-160-1500 Roll Frame Portal Press is a powerful hydraulic press engineered for heavy-duty metalworking applications, featuring an extended working width of 1500 mm. With a pressing force of 1570 kN, this press is ideal for tasks requiring high force and precision. Featuring a manually movable portal and a movable cylinder, it provides optimal flexibility and versatility. Built exclusively in Europe, the PPTL-160-1500 is designed to withstand demanding environments while ensuring consistent, high-quality results. The extended working width allows easy access to larger workpieces, enhancing its capabilities for a wider variety of metal fabrication tasks.
Technical Specifications
- Pressure force [kN]: 1570
- Motor power [kW]: 3
- Working speed [mm/sec]: 2.40
- Approaching speed [mm/sec]: 7.48
- Return speed [mm/sec]: 9.35
- Maximum pressure [bar]: 255
- Piston stroke [mm]: 400

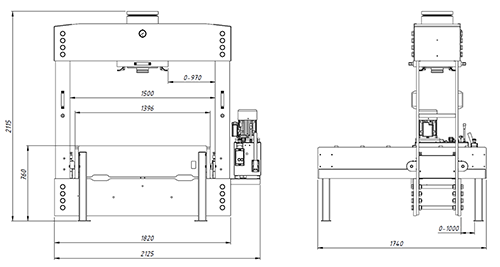

- Table size (L x W) [mm]: 1740 x 1396
- Working width [mm]: 1500
- Vertical light [mm]: 700
- Working height [mm]: 760
- Manual movable cylinder and frame
- Total height [mm]: 2104
- Total length [mm]: 1740
- Total width [mm]: 2125
- Weight [kg]: 2650
Features
- Equipped with a lower table with T-grooves
- The cylinder is mechanized at the end to adapt tools and moulds
- The cylinder stroke is easy to adjust with the end-stroke switches
- Manual / semi-automatic work mode
- Two cylinder speeds
- Pressure switch and manometer
- Operation by two-hands push buttons
- 2 year warranty
Optional Accessories
- 1 Phase Motor (50 or 60 Hz)
- 60 Hz motor (1 or 3 Phase)
- 1 Phase Motor
- Geometry adapted to your requirements
- V-Blocks
- Press Brake Attachments
- Adjustable Pressing Plates
- Die Sets
- Hydraulic Foot Pedal Control
- Extended Cylinders
- Piston Attachments
- Digital Pressure Gauge
- Custom Table Plates
Industries and Thier Uses
- Automotive: Straightening large chassis components and assembling heavy-duty parts
- Manufacturing: Bending and shaping large metal sheets and profiles for machinery parts
- Construction: Forming and assembling oversized structural components
- Shipbuilding: Straightening large metal frames and fittings
- Aerospace: Adjusting and assembling larger precision metal parts
160-ton hydraulic Roll Frame Portal Press with manually movable portal and 1500 mm extended working width. Made in Europe for industrial metalworking and precision tasks.
