Scantool 16AT • Pillar Drill • Bench Model • V-Belt Driven • 20 mm • MT2 • 3-Phase
Product Code: 100763000The SCANTOOL 16AT V-belt driven drill press is a high-performance, professional-grade machine designed for both workshop and industrial use. Featuring a Morse Taper No. 2, reversible spindle rotation, and a tilt-able working table, this drill press offers precision and versatility. It comes equipped with an auto lock chuck, separate emergency stop, and working light to ensure maximum safety and ease of use. Manufactured with advanced technology on semi-automatic production lines, the SCANTOOL 16AT is built for durability and long-term reliability.
Please contact for prices
- Description
- Additional Info
Professional-grade SCANTOOL 16AT V-belt driven drill press with advanced safety features, reversible spindle, and tilt-able working table for versatile workshop and industrial use.
Technical Specifications
- RPM: 180-2740
- Voltage: 3x400V – 50 Hz
- Motor: 1.0 HP / 0.75 kW
- Drilling Capacity: 1-20 mm diameter
- Drill Chuck: 16 mm
- Max. Spindle Travel: 80 mm
- Throat Depth: 190 mm
- Swing Capacity: 420 mm (14″)
- Max. Distance Spindle/Table: 465/685 mm
- Table Size: 285 x 285 mm
- Base Size: 480 x 270 mm
- Max. Tilt of Table: +/- 45°
- Number of Spindle Speeds: 12
- Reversible: Yes
- Bench Model: Yes
- Height: 1065 mm
- Net Weight: 61 kg
Features and Uses
- Morse Taper No. 2 for versatile drilling applications
- Reversible spindle rotation for increased functionality
- Auto lock chuck for secure bit holding

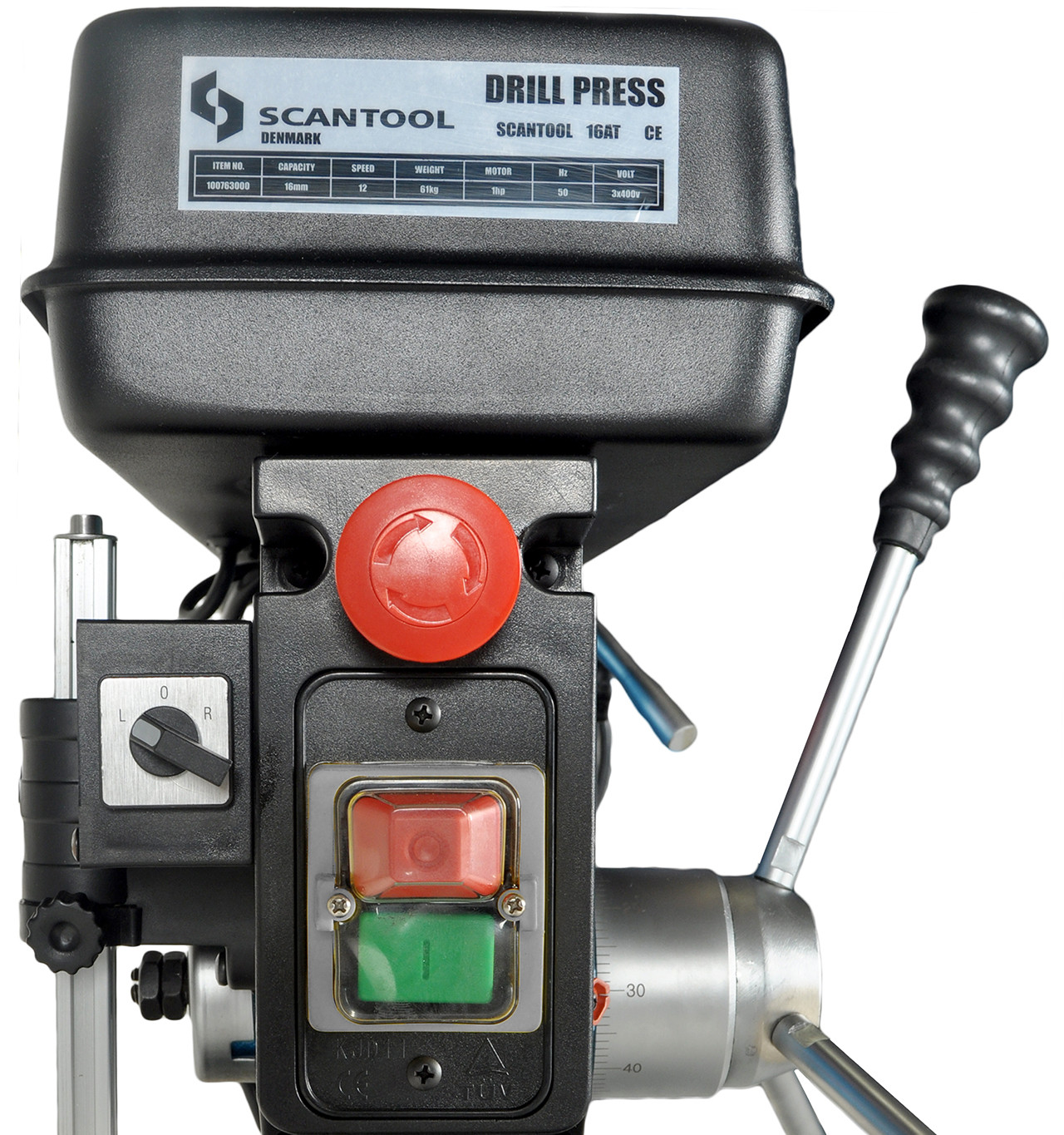

- Separate emergency stop and working light for enhanced safety
- Safety guard complete with micro switch
- Designed for both home workshops and industrial use
- Manufactured using advanced technology on semi-automatic production lines
- Large tilt-able table with degree scale
- Competitively priced for professional use
Industries Using & Uses
- Metal Fabrication: Precision drilling for metal components
- Manufacturing: High-volume drilling in production lines
- Automotive: Drilling and maintenance tasks for vehicle parts
- Aerospace: Precision drilling for aircraft components
- Construction: Versatile drilling for building and structural components
- Home Workshops: High-quality drilling for DIY and small-scale projects
Professional-grade SCANTOOL 16AT V-belt driven drill press with advanced safety features, reversible spindle, and tilt-able working table for versatile workshop and industrial use.
