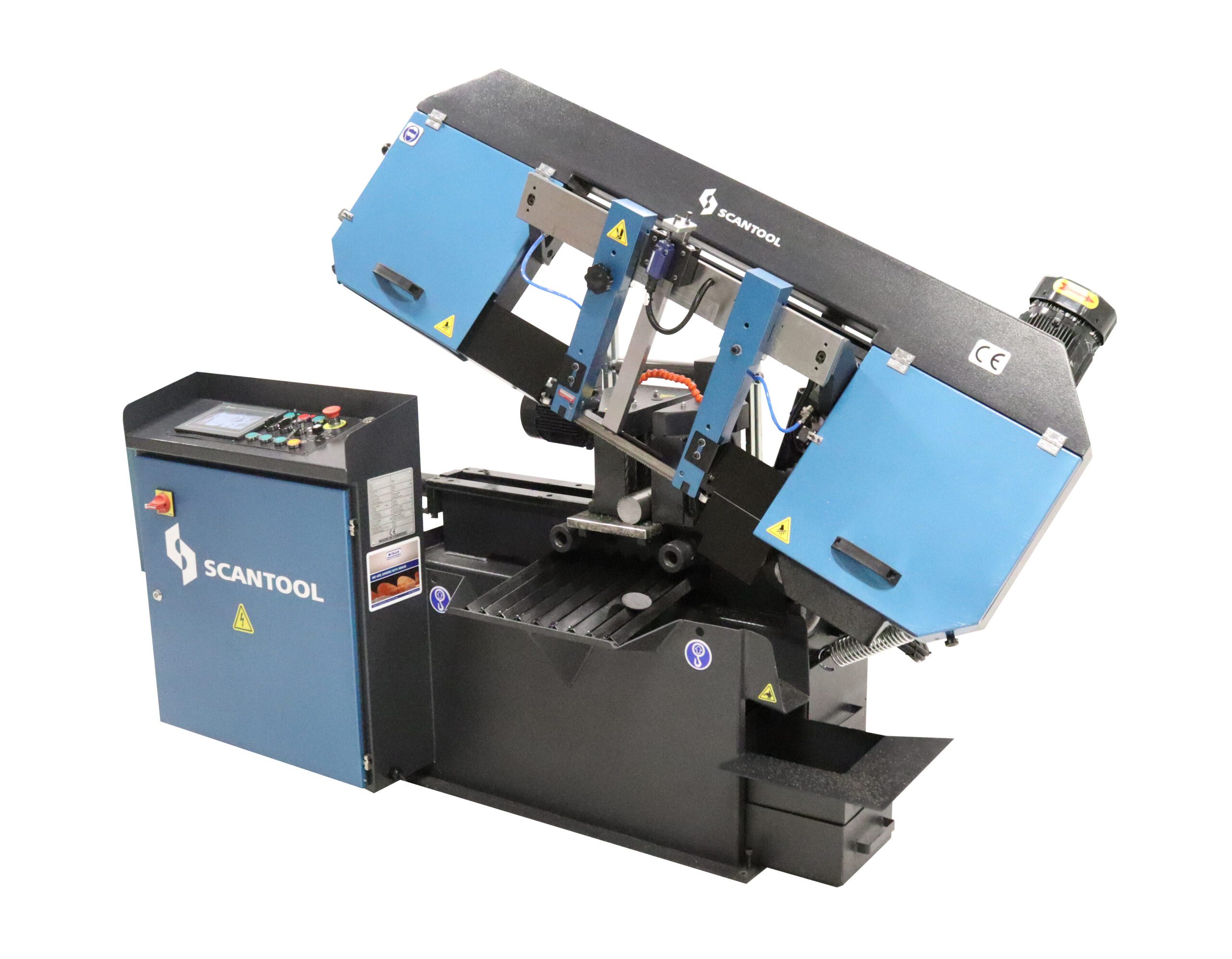

Metal Cutting Bandsaw • Scantool BS 320E
Product Code: 50071320The BE 320E AUTO fully automatic metal cutting band saw is engineered for high-precision and efficient cutting of steel and metal pipes. This advanced machine features automatic bow descent, ensuring smooth and controlled cutting operations. The fully adjustable blade speed allows for optimal performance across a variety of materials, while the automated material clamping and feeding system enhances productivity and consistency. Additionally, the BE 320E AUTO is capable of cutting varying lengths off the same piece of cut stock, making it an ideal choice for demanding industrial environments. Manufactured according to CE regulations, this bandsaw guarantees safety and high standards of quality.
Please contact for prices
- Description
- Additional Info
The BE 320E AUTO is a state-of-the-art fully automatic metal cutting band saw designed for unparalleled precision and efficiency. With features such as automatic bow descent, fully adjustable blade speed, and automated material clamping and feeding, this machine is perfect for high-volume production environments where consistency and accuracy are paramount.
Technical Specifications
- Motor Power:
2.2 kW - Hydraulic Motor:
0.4 kW - Feeder Motor:
0.25 kW - Net Weight:
770 kg - Saw Blade Dimensions:
3660 x 27 x 0.9 mm - Saw Blade Speed:
20 to 100 m/min - Sawing Capacity at 0°:
Round: ø320 mm
Box Section: 320 x 320 mm
Rectangular Section: 3000 x 320 mm - Sawing Capacity at -45°:
Round: ø320 mm - Voltage:
400V, 50 Hz, 3-Phase - Working Height:
640 mm - Dimensions (L x W x H):
1900 x 850 x 1300 mm
Features and Uses
- Fully Automatic Operation:

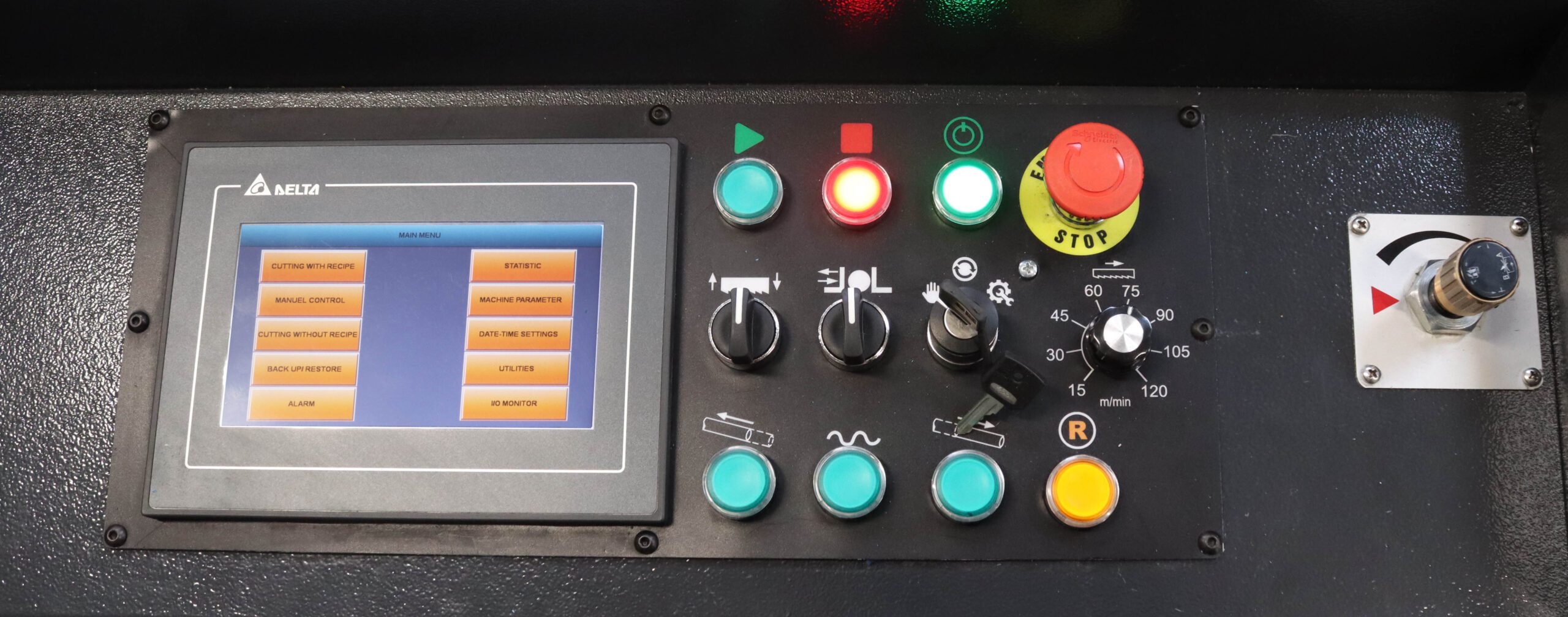

Controlled by a PLC controller and encoder for precision. - Hydraulic Feed and Lift:
Ensures precise cutting with hydraulic feed and lift of the saw bow. - Hydraulic Vise:
Provides stable and secure clamping during operation. - Built-in Cooling System:
Maintains a clean, dry, and safe working environment. - Variable Speed Control:
Adjustable speed for different cutting requirements. - Quick Release on Vice:
Allows for easy and fast adjustments. - High Accuracy with Minimal Vibration:
Ideal for mass production with precise cuts. - CE Certified:
Manufactured according to CE regulations for safety and quality.
Industries Using the Machine and Their Uses
- Metal Fabrication:
Precision cutting of steel and metal pipes. - Manufacturing:
Automated cutting for large-scale production environments. - Construction:
Preparation of steel components for building and infrastructure projects. - Automotive:
Cutting metal parts and components for automotive manufacturing.
Fully automatic metal cutting band saw with automatic bow descent, adjustable blade speed, and automated material clamping and feeding for precise and efficient cutting
