Horizontal Beam Cambering Press • 150 Ton • PPHC150 • RHTC
Product Code: PPHC150The Profi Press PPHC-150 Hydraulic Horizontal Press offers exceptional strength and precision for bending and straightening large profiles, bars, and beams. Built in Europe with a 150-ton capacity, this robust cambering press features a durable S355JR steel structure, a double-acting cylinder with anti-turning system, and a horizontal design for easy handling of heavy-duty materials. Engineered to meet CE standards and backed by a 2-year warranty, this press is customizable to suit your industrial needs.
Please contact for prices
- Description
- Additional Info

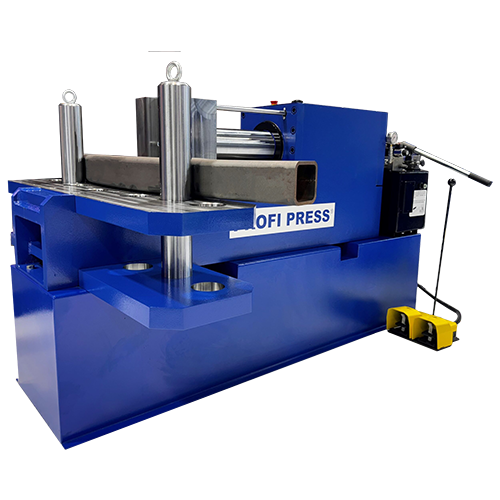

The Profi Press PPHC-150 Hydraulic Horizontal Press is designed for heavy-duty straightening and bending applications. With a robust electro-welded horizontal structure made from S355JR steel, this press ensures exceptional stability and reliability. A pushing main table supported by cylindrical lateral guides delivers perfect alignment during operation.
Key functionalities include a double-acting cylinder with an anti-turning system, limit switches for cylinder stroke regulation, and a two-speed hydraulic unit with automatic high-speed disconnection when counterpressure is detected. Precision tools like a pressure regulator, tons gauge, and hand pump make it versatile for demanding tasks.
Fully CE-compliant and built to last, the PPHC-150 comes with a 2-year warranty and customizable options, including larger openings between tables, extended support tables, or Siemens NC-control. Contact us for more information on how this press can meet your specific requirements.
Technical Specifications
- Pressure force [tn]: 150
- Motor power [kW]: 4
- Working speed [mm/sec]: 2.40
- Approaching speed [mm/sec]: 7.48
- Max Speed [mm/sec]: 9.35
- Pressure max. [bar]: 250
- Piston stroke [mm]: 380
- Opening between tables [mm]: 500
- Pushing main table [mm]: 400 x 400
- Working height [mm]: 800
- Total length [mm]: 2350
- Total width [mm]: 1600
- Overall height [mm]: 1300
- Weight [kg]: 3450
Key Features
- Supporting back pins
- Pushing main table
- Cylindrical lateral guides for perfect alignment

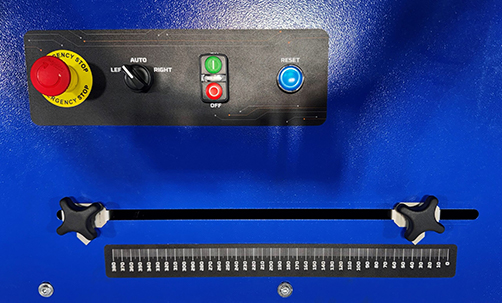

- Adjustable end-stroke switches
- Selector for 1 or 2 speeds
- Pressure regulator and manometer
- Hand pump for precision pressing
Optional Accessories
- Supporting back table (1800 x 400 mm)
- Foot pedal, hand remote control, or two-hand operation
- Basic supply rails with height adjustment (available in different lengths)
- Siemens NC-control to digitally set and save press parameters
- Multiple tools for specific tasks—contact us for your requirements!
