Product Code: ERLO-BESPOKEThe Erlo TSA Series Pillar Drill stands out with its precision-engineered design, featuring an advanced HMI-controlled Z-axis for unparalleled drilling accuracy. Ideal for demanding engineering applications, this drill offers robust performance and user-friendly operation. Its cutting-edge technology ensures efficient and precise drilling operations, making it a valuable addition to any workshop.
Please contact for prices
- Description
- Additional Info
Our Bespoke Pillar Drill Presses are designed to meet the unique demands of various industrial applications. With customizable features such as advanced HMI controls, precision-engineered components, and tailored drilling capacities, these machines provide exceptional versatility. Whether you require specific feed mechanisms, variable speed options, or enhanced safety systems, our bespoke pillar drills are built to exceed your production needs. Each machine is crafted for reliability, ensuring long-term performance and reduced downtime, making them the ideal solution for workshops and manufacturing facilities requiring precise and adaptable drilling solutions.
TSA Series – Column Pillar Drills – Gear Driven
| Specification | TSA.25 | TSA.30 |
|---|---|---|
| Drilling capacity (mm): | 25 | 30 |
| Tapping capacity (mm): | M22 | M25 |
| Transmission: | Gear | Gear |
| Speed Range (w/o variator) (rpm): | 65 to 3060 | 65 to 3060 |
| Speed Range (with variator) (rpm): | 45 to 3100 | 45 to 3100 |
| Feed: | Automatic | Automatic |
| Motor (w/o variator) (hp): | 1.1 / 1.6 | 1.5 / 1.9 |
| Motor (w/ variator) (hp): | 2 | 2 |
| Spindle cone: | MT3 | MT3 |
| Spindle stroke (mm): | 120 | 120 |
| Distance spindle-column (mm): | 250 | 250 |
| Distance spindle-table (Min/Max mm): | 170 / 660 | 170 / 660 |
| Distance spindle-base (mm): | 1216 | 1216 |
| Column diameter (Ø mm): | 100 | 100 |
| Table (mm): | 270 x 300 | 270 x 300 |
| Base w/o coolant (mm): | 600 x 380 | 600 x 380 |
| Base w/ coolant (mm): | 665 x 400 | 665 x 400 |
| CE Certified: | Yes | Yes |
| Weight Net/Gross (kg): | 260 / 320 | 260 / 320 |
| Packaging (mm): | 2200 x 600 x 900 | 2200 x 600 x 900 |
Technical Features

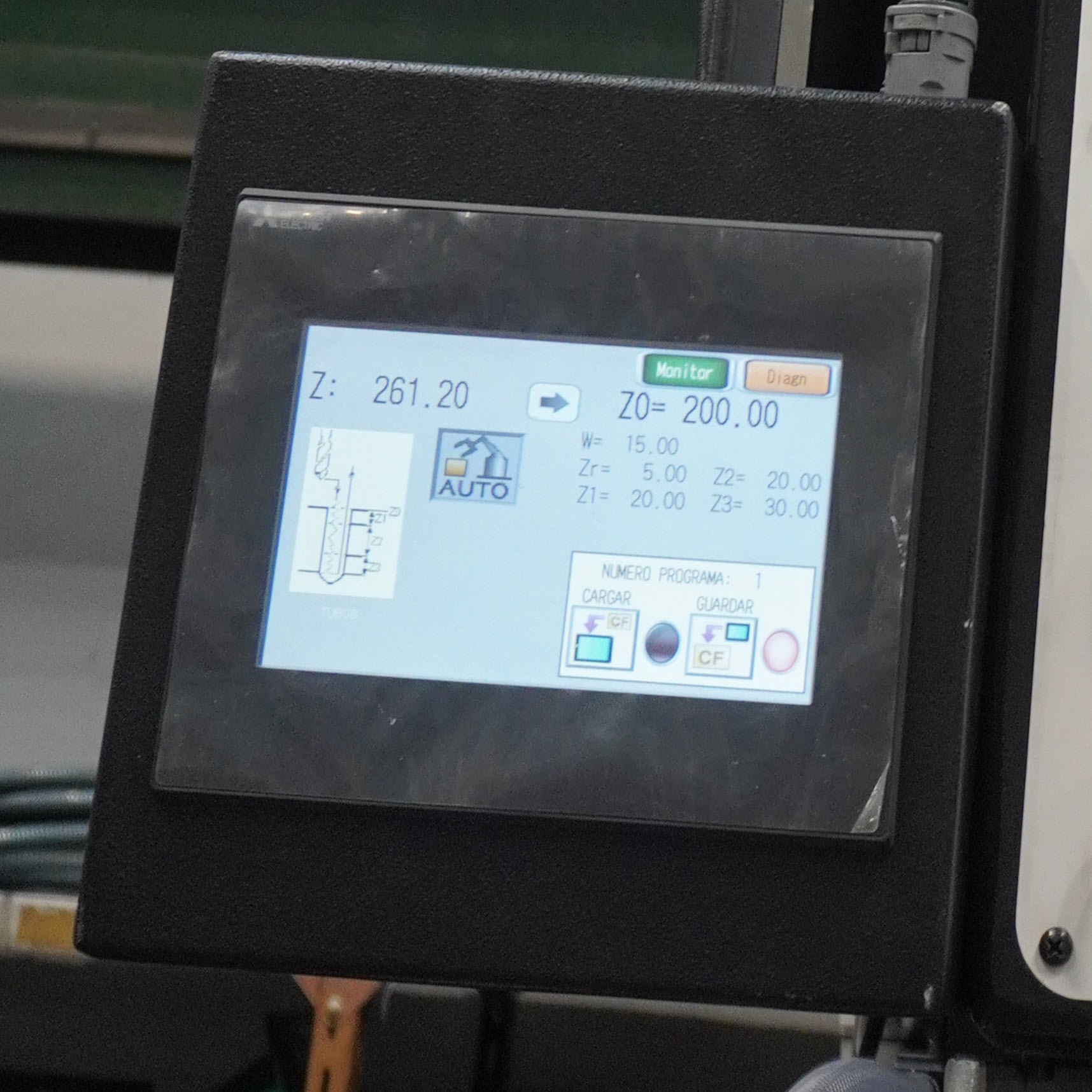

- Advanced HMI interface for precise Z-axis control
- Robust construction for durability and stability
- High-performance drilling capacity for various materials
- Adjustable speed settings to suit different drilling requirements
- Integrated safety features for operator protection
- Easy setup and operation for enhanced productivity
- Precision-engineered components for long-lasting reliability
- Compact design for efficient use of workspace
- Energy-efficient operation to reduce operational costs
- Versatile drilling options for a wide range of applications
Product Uses
- Precision drilling in metalworking projects
- Woodworking and carpentry applications
- Manufacturing custom parts and components
- Aerospace component fabrication
- Automotive parts production
- Electrical and electronics assembly drilling
- Creating intricate designs in crafts and jewelry
- Prototyping for engineering and design projects
- Maintenance and repair operations
- Educational purposes in technical and vocational training
Elevate your manufacturing capabilities with the Erlo TSA Series Pillar Drill. Featuring an HMI-controlled Z-axis, this drill delivers precision drilling with ease of use, making it perfect for intricate engineering projects. Experience unmatched accuracy and efficiency.
