D150/150-400 Touch Heavy-Duty Rotary Welding Table from Merkle
Product Code: 161.868The Merkle D 150 Touch / 150-400 Turntable is engineered for high-precision automated welding. With a load capacity of up to 150 kg and torque of 50 Nm, it delivers smooth and consistent rotational movement for circumferential welds. It features manual tilting with a 135° tilt range and a maximum RPM of 10, making it capable of handling various part sizes and welding requirements. The turntable is built with safety in mind, incorporating advanced controls and emergency stop functions, ensuring operator protection.

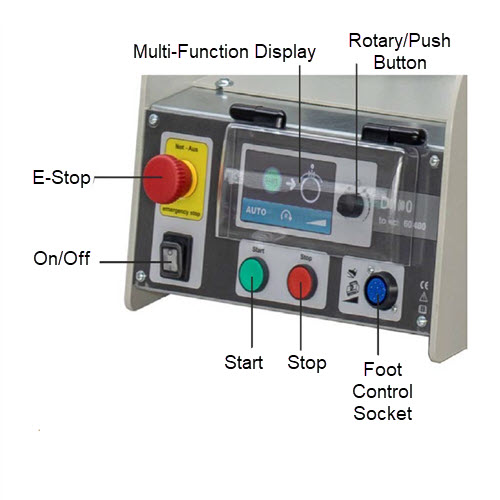

The system includes a touch display for easy control of all functions, including speed, direction, and rotation. Optional features include automated welding and overlap welding facilities for high-demand production environments.
Please contact for prices
- Description
- Additional Info
The Merkle D 150 Touch / 150-400 Turntable is a versatile and robust solution designed for welding automation. With a load capacity of up to 150 kg, this precision machine allows smooth, adjustable rotation and tilting movements, making it ideal for circumferential welding applications. Its intuitive touch display and optional automation interfaces provide seamless integration into your automated welding setup. The Merkle D 150 ensures optimal performance with a maximum RPM range of 0.05 – 10 min⁻¹ and a torque of 50 Nm, making it suitable for heavy-duty applications.
Technical Specifications
- Primary Voltage: 1 x 230/240 V
- Current Rating: 1 A
- Frequency: 50-60 Hz
- Max Welding Current: 400 A at 34 V
- Duty Cycle: 80% at 400 A (40°C)
- Max Load Capacity (Horizontal): 150 kg (1.5 kN)
- Max Load Capacity (Vertical): 100 kg (1 kN)
- Torque: 50 Nm
- RPM Range: 0.05 – 10 min⁻¹
- Tilt Angle: 135°
- Max Workpiece Diameter: 490 mm (Table Height 400 mm)
- Weight: 55 kg (Table Height 400 mm)
- Dimensions: 678 x 412 x 400 mm
- Spindle Bore: 60 mm or 150 mm
Features and Uses
- Smooth rotational movement with adjustable speed and direction
- Touch display with user-friendly controls
- Manual tilt functionality for flexible welding positions
- Optional automated welding and overlap welding
- Emergency stop button for enhanced safety
- Robust design suited for heavy-duty welding environments
- Easy integration with welding power sources and external controllers
Industries Using the Machine and Their Uses
- Automotive Manufacturing: Precision welding for exhaust systems and circular components
- Metal Fabrication: Seamless circumferential welds for pipes, flanges, and tanks
- Aerospace: High-precision welding for airframe components
- Heavy Machinery: Custom part welding for large, complex assemblies
| D 150 Touch / 60-400 | D 150 Touch / 60-750 | D 150 Touch / 150-400 | D 150 Touch / 150-750 | D 102 / 60-400 | D 102 / 150-400 | D 302 / 60-400 | D 302 / 150-400 | |
|---|---|---|---|---|---|---|---|---|
| Max Load Capacity (Horizontal) | 150 kg / 1.5 kN | 150 kg / 1.5 kN | 150 kg / 1.5 kN | 150 kg / 1.5 kN | 100 kg / 1 kN | 100 kg / 1 kN | 150 kg / 1.5 kN | 150 kg / 1.5 kN |
| Max Load Capacity (Vertical) | 100 kg / 1 kN | 100 kg / 1 kN | 100 kg / 1 kN | 100 kg / 1 kN | 70 kg / 0.7 kN | 70 kg / 0.7 kN | 100 kg / 1 kN | 100 kg / 1 kN |
| Torque | 50 Nm | 50 Nm | 50 Nm | 50 Nm | 35 Nm | 35 Nm | 50 Nm | 50 Nm |
| RPM Range | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ | 0.05 – 10 min⁻¹ |
| Tilt Angle | 135° | 135° | 135° | 135° | 135° | 135° | 135° | 135° |
| Max Workpiece Diameter | Ø 490 mm (Table Height 400 mm) | Ø 1160 mm (Table Height 750 mm) | Ø 490 mm (Table Height 400 mm) | Ø 1160 mm (Table Height 750 mm) | Ø 490 mm (Table Height 400 mm) | Ø 490 mm (Table Height 400 mm) | Ø 490 mm (Table Height 400 mm) | Ø 490 mm (Table Height 400 mm) |
| Weight | 55 kg | 65 kg | 55 kg | 65 kg | 45 kg | 50 kg | 55 kg | 55 kg |
| Power Source Required | 1 x 230/240 V | 1 x 230/240 V | 1 x 230/240 V | 1 x 230/240 V | 1 x 230/240 V | 1 x 230/240 V | 1 x 230/240 V | 1 x 230/240 V |
| Dimensions (L x W x H) | 678 x 412 x 400 mm | 645 x 412 x 750 mm | 678 x 412 x 400 mm | 645 x 412 x 750 mm | 645 x 412 x 400 mm | 645 x 412 x 400 mm | 678 x 412 x 400 mm | 678 x 412 x 400 mm |
The Merkle D 150 Touch / 150-400 is a high-performance welding turntable featuring automated rotation, tilt, and torque control. Ideal for precise welding tasks.
