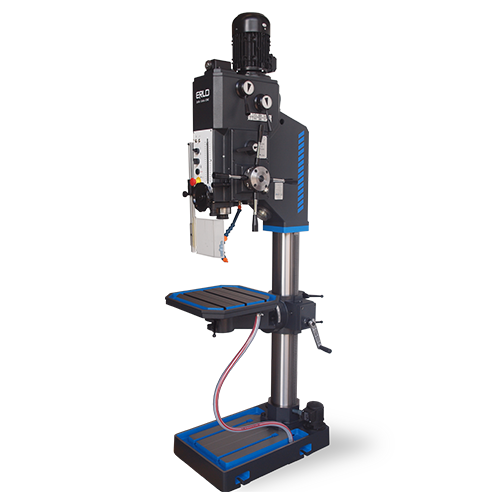

G and GP Series Floor Standing Column Drills from ERLO
Product Code: G-SERIES-ERLOThe ERLO G - GP SERIES Professional Pillar Drill are powerful and versatile drills that is ideal for a variety of industrial applications. It features a gear-driven automatic feed for precise and consistent drilling. It also has a variable speed control, which allows you to adjust the speed of the drill to the material you are working with.
The ERLO G - GP. SERIES are sturdy and reliable drills that is built to last. It is made from high-quality materials and features a number of safety features, such as a spindle lock and a reversing switch. The drill is also easy to use and maintain.
Please contact for prices
- Description
- Additional Info
| Specifications / Model | G.32 | GP.32 |
|---|---|---|
| Drilling (mm): | 32 | 32 |
| Tapping (mm): | M24 | M24 |
| Transmission: | Gear | Gear |
| Speed Range (rpm): | 65-3060 | 65-3060 |
| Feed: | Manual | Automatic |
| Number and range of feeds: | – | (3) 0.10-0.20-0.30 |
| Clutch: | – | Mechanical |
| Motor (hp): | 2 / 3 | 2 / 3 |
| Taper: | MT3 | MT3 |
| Stroke (mm): | 120 | 120 |
| Spindle to Column (mm): | 250 | 250 |
| Spindle to Base (Min/Max mm): | 85 / 635 | 85 / 635 |
| Spindle to Base (mm): | 1170 | 1170 |
| Column Diameter (Ø mm): | 100 | 100 |
| Table with T-Slots (mm): | 270 x 300 | 270 x 300 |
| Base without T-Slots and Coolant (mm): | 600 x 380 | 600 x 380 |
| Base with T-Slots and Coolant (mm): | 665 x 400 | 665 x 400 |
| Coolant equipment standard: | No | No |
| Lighting equipment standard: | No | No |
| CE Certified: | Yes | Yes |
| Weight Net/Gross (kg): | 260 / 320 | 260 / 320 |
| Packing Dimensions (mm): | 2110 x 570 x 80 | 2140 x 600 x 80 |
| Specifications / Model | GP.40 | GP.50 |
|---|---|---|
| Drilling (mm): | 40 | 50 |
| Tapping capacity (mm): | M30 | M35 |
| Transmission: | Gear | Gear |
| Speed Range (rpm): | 75-2100 | 93-1420 |
| Feed: | Automatic | Automatic |
| Number Feeds: | 3 | 3 |
| Clutch: | Mechanical | Mechanical |
| Motor (hp): | 1.8 / 3.2 | 4 |
| Taper: | MT4 | MT4 |
| Spindle Stroke (mm): | 160 | 180 |
| Spindle to Column (mm): | 300 | 350 |
| Spindle to Table (Min/Max mm): | 70 / 885 | 95 / 865 |
| Spindle to Base (mm): | 1230 | 1220 |
| Column Diameter (Ø mm): | 125 | 150 |
| Table with T-Slots (mm): | 400 x 420 | 480 x 480 |
| Dimensions of the base without t slots (without coolant): | 400 x 655 | 400 x 655 |
| Dimensions of the base with t slots (with coolant): | 492 x 695 | 480 x 755 |
| Coolant equipment standard: | No | No |
| Lighting equipment standard: | No | No |
| CE Certified: | Yes | Yes |
| Weight Net/Gross (kg): | 300 / 400 | 435 / 565 |
| Packaging Dimensions (mm): | 2370 x 600 x 960 | 2380 x 620 x 1050 |
G Series Features
- Manual Feed
- Geared Drive with Hardened and Ground Gears
- Fixed Headstock
- Adjustable Depth End
- Tool Ejector
- Electrical Equipment at Low Voltage
- Drill Guard with Micro-Switch
- Emergency Push Button
- CE Certified
GP Series Features
- Automatic Feed
- Geared Drive with Hardened and Ground Gears
- Fixed Headstock
- Adjustable Depth End
- Tool Ejector
- Electrical Equipment at Low Voltage
- Drill Guard with Micro-Switch
- Emergency Push Button
- CE Certified
Optional Extras – G & GP Series
- Lighting Equipment: 20010
- Manual Tapping System IR/RS: 10042
- Rotating Table: 20082
- Coolant Equipment in Base: 91118
- Rotating and Tilting Table (for GP.50): 30084
- Reversible Rotating Table with Vice (for GP.40): 20087
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
