Manual Bending Roller MBR 2050 x 1.5 • Scantool 500711019
Product Code: 500711019The MBR 2050 x 1.5 is engineered for precision and durability in manual bending applications. With a working length of 2050 mm and a sheet thickness capacity of 1.5 mm, this machine is ideal for tasks requiring reliable bending of steel. Its design includes rotatable top rollers and conical bending functionality, adhering to EU safety directives.
Please contact for prices
- Description
- Additional Info
The MBR 2050 x 1.5 Manual Bending Roller is a robust machine designed for bending light to medium gauge materials. Featuring durable cast iron frames and SAE 1050 steel rollers, it offers high tensile strength and reliability for various bending applications.
Technical Specifications
- Capacity (mm): 2050 x 1.5
- Machine Height (mm): 1250
- Machine Length (mm): 3080
- Machine Width (mm): 700
- Min. Bending Diameter (ø mm): 143
- Net Weight (kg): 650
- Roller Diameter (ø mm): 95
- Roller Speed (m/min): 7
- Sheet Thickness Steel (mm): 1.5
- Working Length (mm): 2050
Features
- Cast iron main frames
- Rotatable top roller
- Conical bending available
- Wired grooves
- Built according to EU safety directives
- Rollers of SAE 1050 quality steel with high tensile strength
Industries and Uses
- Ventilation Industry: Ideal for fabricating ventilation components and ducts.
- Aluminum Fabrication: Suitable for bending aluminum sheets up to 1.0 mm thick.
- Sheet Metal Workshops: Effective for various sheet metal bending tasks.
- Automotive Sector: Useful for producing custom metal parts and brackets.
- Construction: Ideal for bending structural metal components and supports.

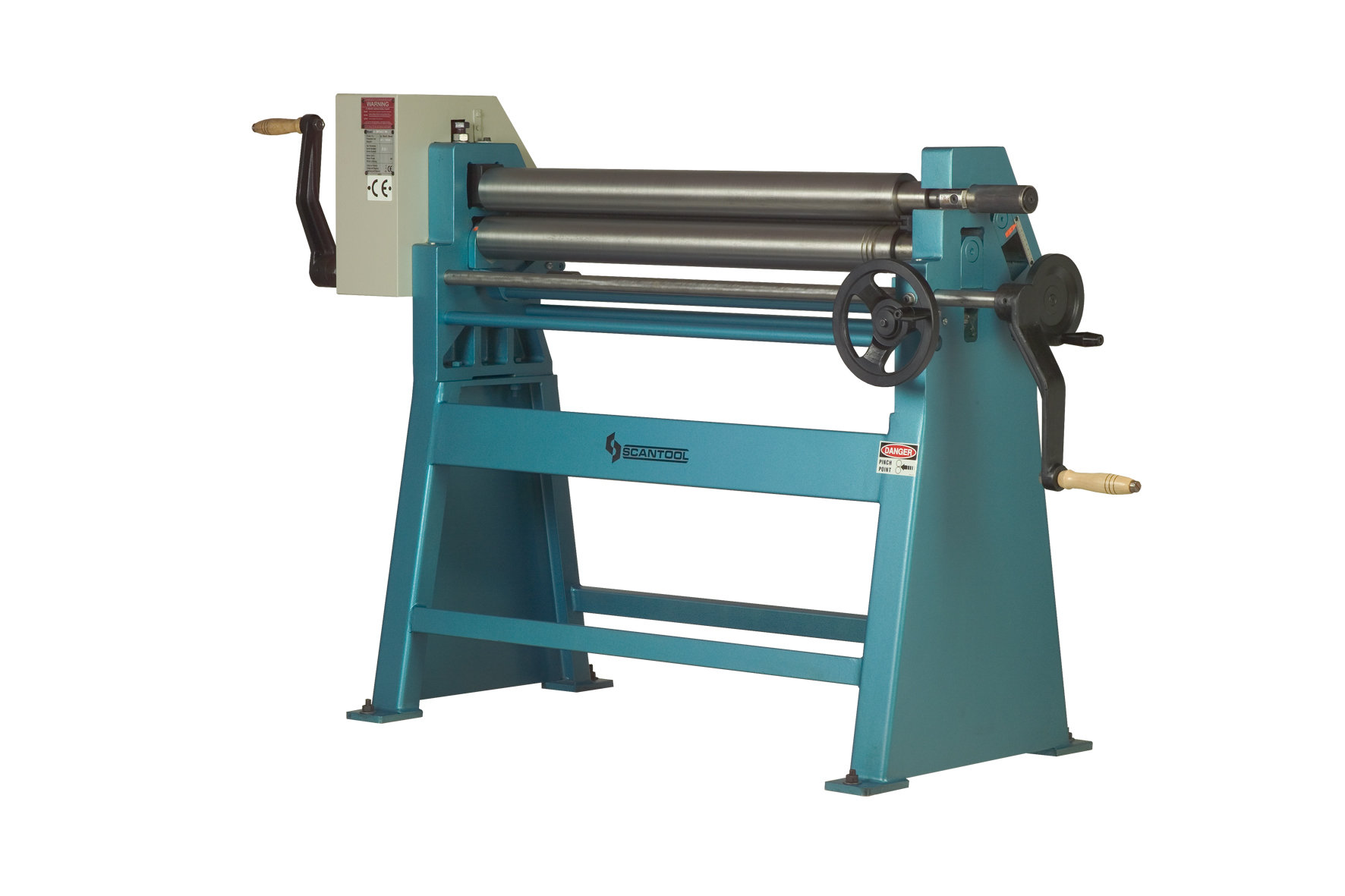

Manual bending roller MBR 2050 x 1.5, featuring cast iron frames, rotatable top roller, and conical bending capabilities.
