Motorized Bending Roller EBR 1270 x 2.5 • Scantool 500717005
Product Code: 500717005The EBR 1270 x 2.5 provides a working length of 1270 mm and is designed to handle aluminum and steel sheets up to 2.5 mm thick. It includes motorized back roll adjustment and hardened, honed rollers for precision. Constructed with cast iron frames and SAE 1050 steel rollers, it adheres to EU safety standards, ensuring reliable operation for various industrial applications.
Please contact for prices
- Description
- Additional Info

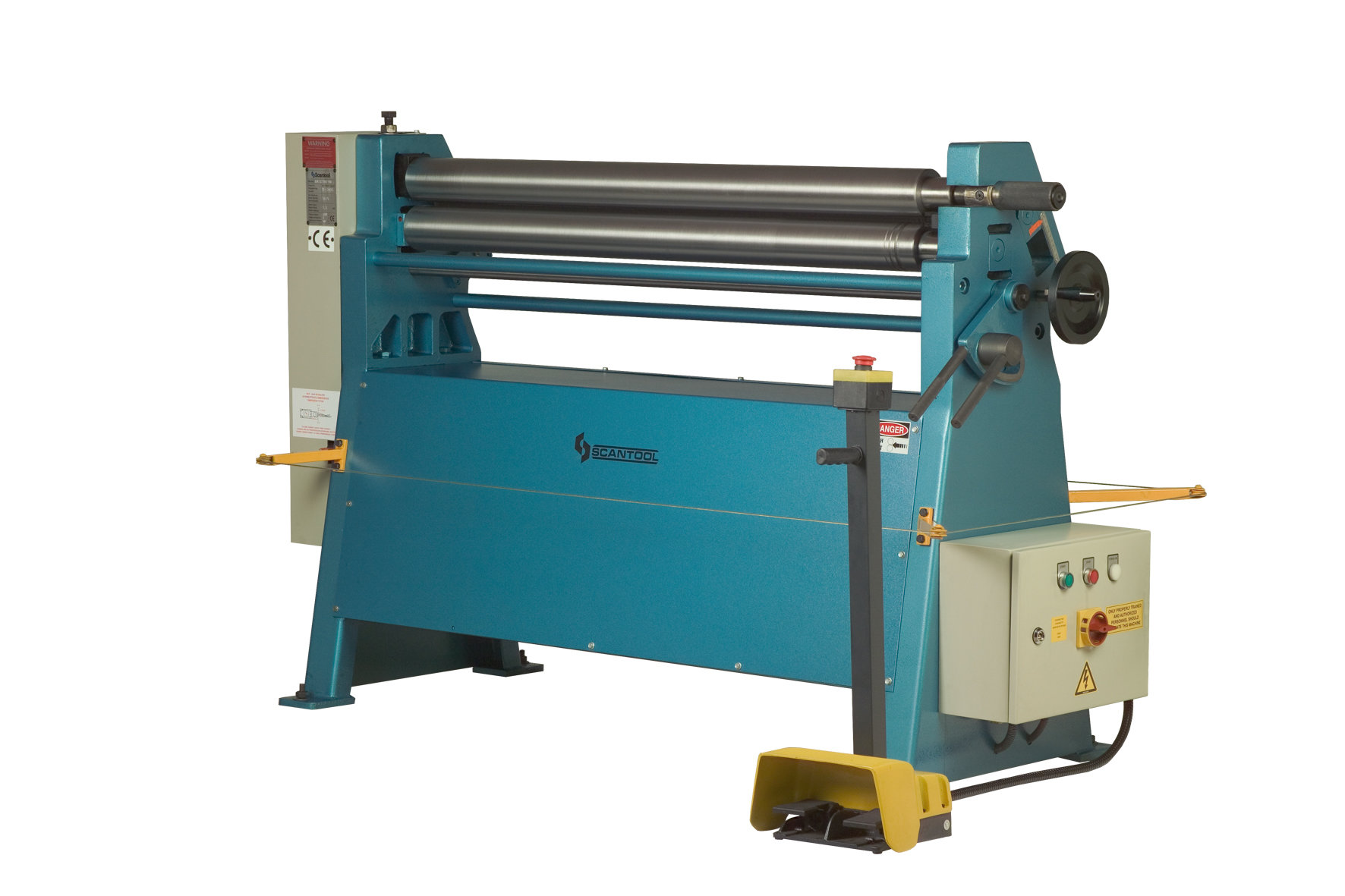

The EBR 1270 x 2.5 Motorised Bending Roller is an asymmetrical three-roller machine designed for light to medium bending jobs. It is ideal for aluminum bends and various applications in the ventilation industry. The machine offers an attractive price and versatile functionality for different bending needs.
Technical Specifications
- Capacity: 1270 x 2.5 mm
- Sheet Thickness: 2.5 mm
- Working Length: 1270 mm
- Voltage: 3x400V-50/60Hz
- Motor: 2.0 HP (1.5 kW)
- Min. Bending Diameter: 135 mm
- Roller Diameter: 90 mm
- Roller Speed: 6 m/min
- Dimensions (L x W x H):
2250 x 750 x 1200 mm - Net Weight: 420 kg
Features
- Cast iron main frames
- Main motor with brake

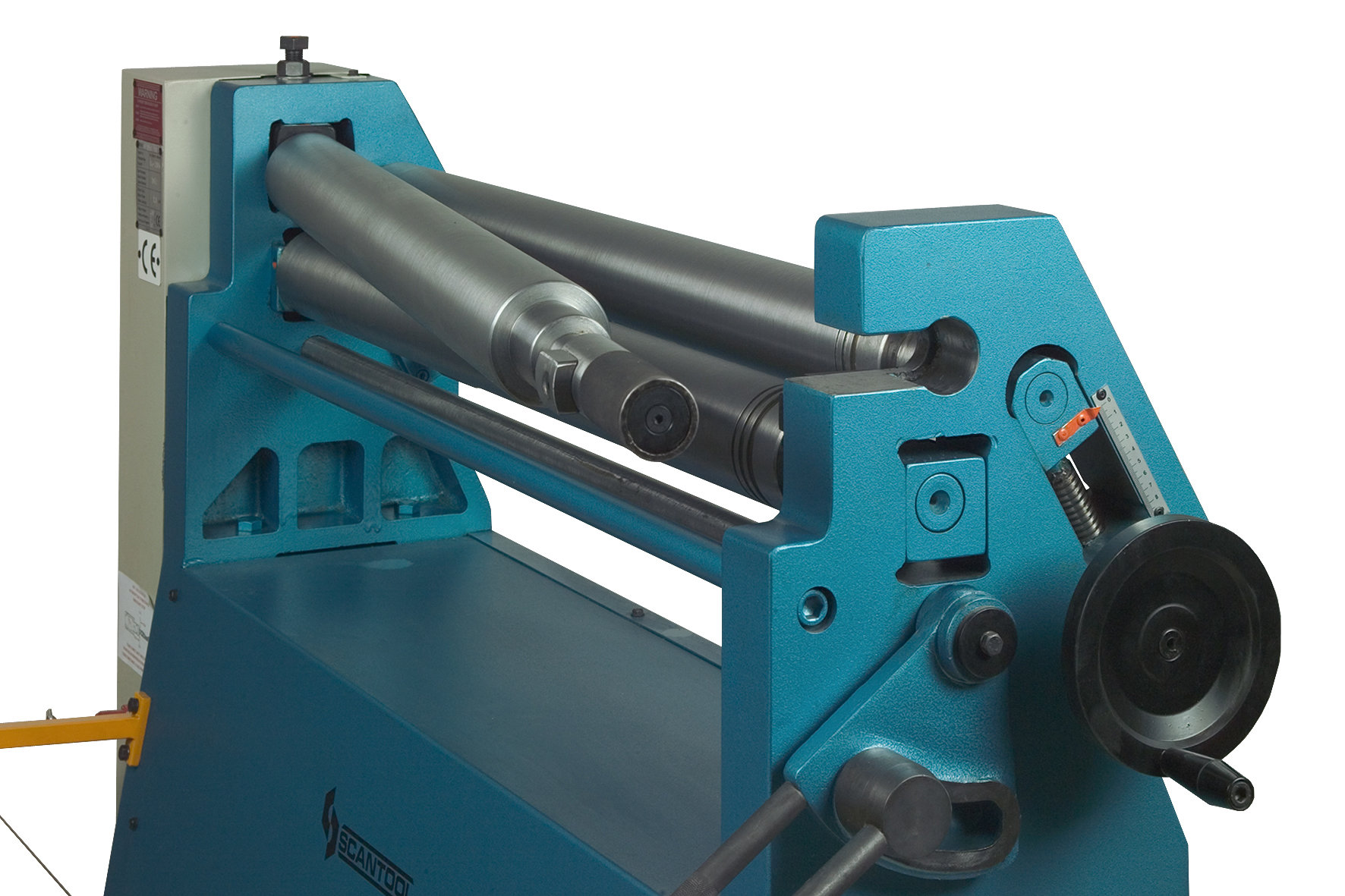

- Rotatable top roller
- Motor-powered centralized rollers
- Conical bending, pre-bending available
- Wired grooves

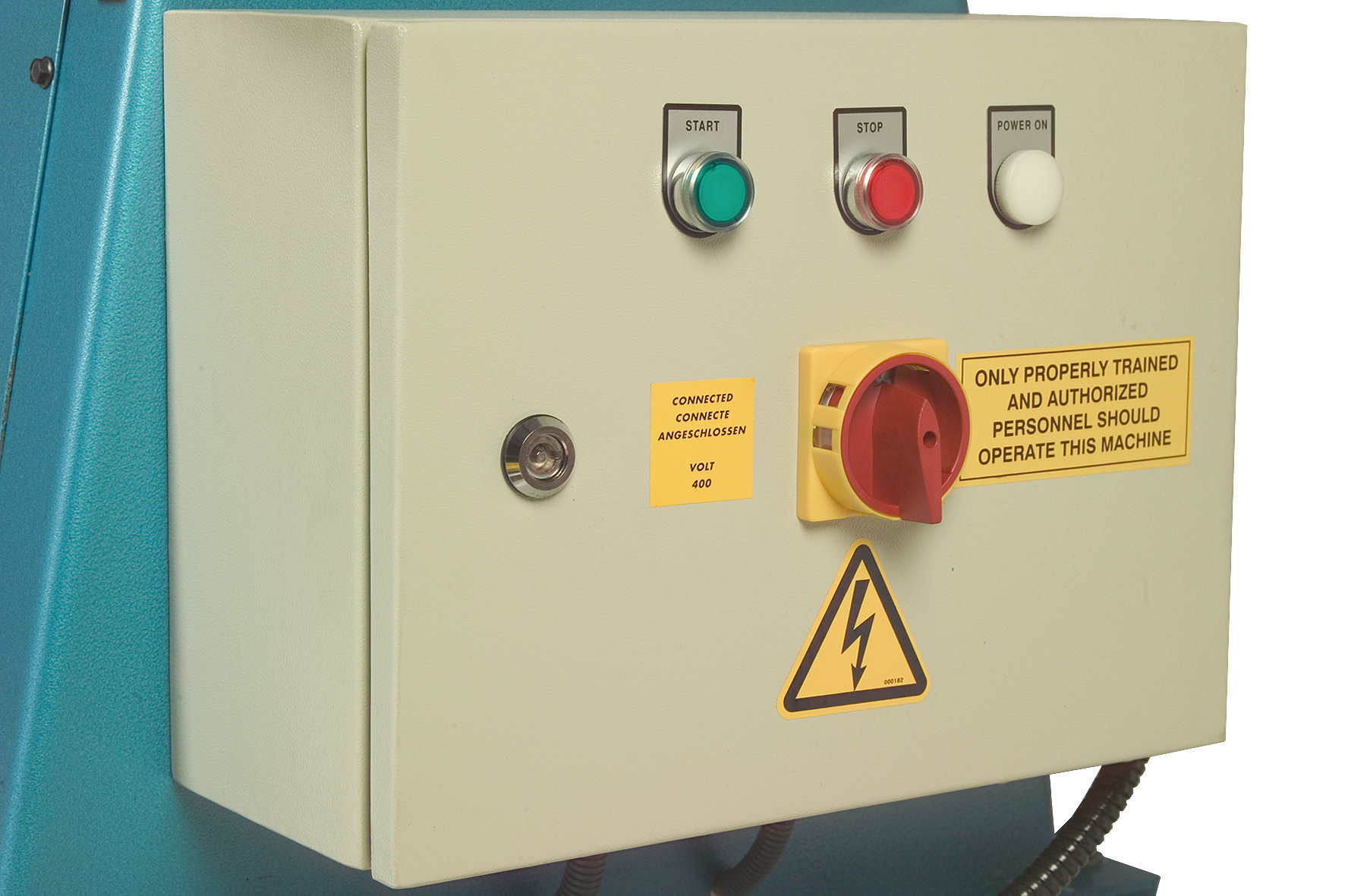

- Mobile control panel
- Built according to EU safety directives
- Rollers of SAE 1050 quality steel with high tensile strength
Industries and Uses
- Ventilation Industry: Ideal for fabricating ventilation components and ducts.
- Aluminum Fabrication: Suitable for bending aluminum sheets up to 1.0 mm thick.
- Sheet Metal Workshops: Effective for various sheet metal bending tasks.
- Automotive Sector: Useful for producing custom metal parts and brackets.
- Construction: Ideal for bending structural metal components and supports.
Motorised bending roller EBR 1270 x 2.5, suitable for light to medium tasks, featuring durable cast iron frames, motor-powered rollers, and conical bending capabilities.
