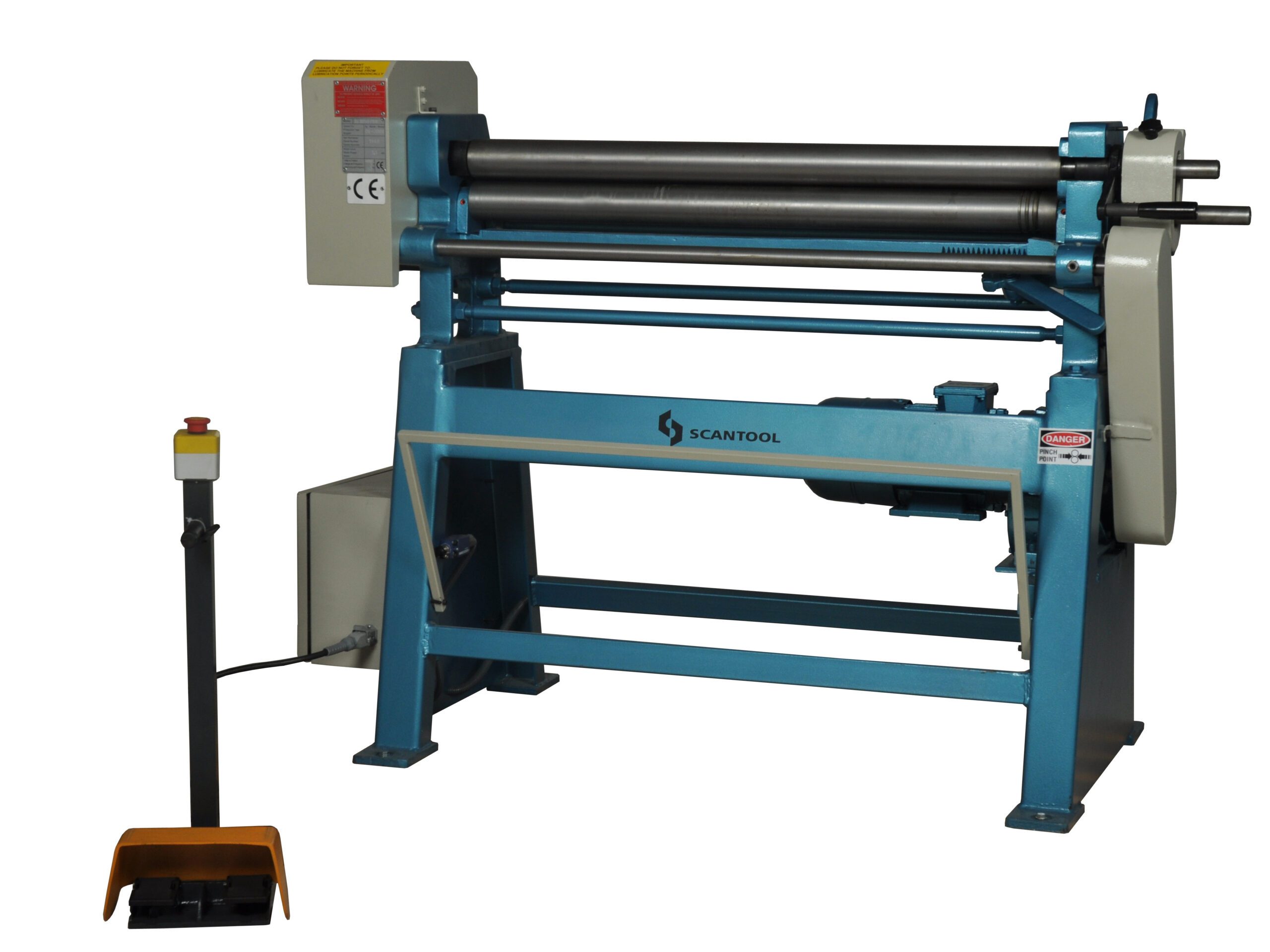

Motorized Bending Roller EBR 1050 x 1.5 • Scantool 500717001
Product Code: 500717001The EBR 1050 x 1.5 is designed for light to medium applications, offering robust performance for bending aluminum and other materials. The machine features cast iron main frames and motor-powered centralized rollers for smooth operation. With its 1050 mm bending length and SAE 1050 quality steel rollers, it ensures precise and reliable bending. The EBR 1050 x 1.5 is equipped with a mobile control panel and adheres to EU safety standards, making it a practical and user-friendly choice for various industries.
Please contact for prices
- Description
- Additional Info
The EBR 1050 x 1.5 Motorised Bending Roller is an asymmetrical three-roller machine designed for light to medium bending tasks. Perfect for aluminum and ventilation applications, it offers durability and versatility at an attractive price. Constructed with cast iron frames and SAE 1050 quality steel rollers, this machine provides reliable performance and ease of use.
Technical Specifications
- Capacity: 1050 x 1.5 mm
- Sheet Thickness Steel: 1.5 mm
- Working Length: 1050 mm
- Voltage: 3x400V-50/60Hz
- Motor: 2.0 HP (1.5 kW)
- Min. Bending Diameter: 102 mm
- Roller Diameter: 68 mm
- Roller Speed: 6 m/min
- Dimensions (L x W x H):
2000 x 750 x 960 mm - Net Weight: 325 kg
Features
- Cast iron main frames
- Main motor with brake
- Rotatable top roller
- Motor-powered centralized rollers
- Wired grooves
- Mobile control panel
- Built according to EU safety directives
- Rollers of SAE 1050 quality steel with high tensile strength
Industries and Uses
- Ventilation Industry: Ideal for fabricating small ducts and ventilation components.
- Aluminum Fabrication: Suitable for bending aluminum sheets and profiles.
- Sheet Metal Workshops: Effective for various sheet metal bending tasks.
- Automotive Sector: Useful for creating small custom metal parts.
- Construction: Ideal for bending smaller metal structures and supports.
Compact motorised bending roller EBR 1050 x 1.5, suitable for light to medium jobs, featuring cast iron frames, motor-powered rollers, and conical bending capabilities.
