CNC Controlled Guillotine Shears HBX-13 Series for Metal from HM Scantool
Product Code: HBX-13MMExperience top-tier cutting precision with the HBX Series 13 mm Capacity Guillotine Shears from HM Scantool. Perfect for heavy-duty industrial applications, these CNC controlled hydraulic shears offer robust construction, automatic blade gap, and rake adjustment to handle a variety of materials and thicknesses. Equipped with an optical rear safety system with light guards for enhanced safety, the HBX Series ensures safe and efficient operation.
Please contact for prices
- Description
- Additional Info
The HBX Series 13 mm Capacity Guillotine Shears are engineered for high precision and reliability in demanding industrial environments. These shears feature a strong construction and an intuitive interface, allowing for automatic adjustments of the blade gap and rake to suit different materials and thicknesses. Fast back-gauge positioning via CNC control guarantees accurate and efficient cutting operations. Manufactured in Europe using high-quality components, the HBX series is ideal for precision cutting tasks..
Technical Specifications
- Capacity:
2500, 3000, 4000 - Mild Steel Capacity:
13 mm - Stainless Steel Capacity:
6 mm - Cutting Angle:
0.7° – 3.2° - Strokes/Minute:
11, 7.5, 10.8 - Back Gauge:
750 mm - Motorized Backgauge:
Yes - Table Height:
900 mm - Motor:
18.5 kW - Voltage:
400V, 3-Phase, 50Hz
Quality and Components
- Manufactured with the highest grade materials
- Electrical system by Siemens, hardened blades by Bohler, and Bosch Rexroth hydraulic system
- Siemens Electrical System:
Provides advanced control and precision, reducing downtime and maintenance.
- Bohler Hardened Blades:
Delivers exceptional cutting performance and longevity, even under high-stress conditions.
- Bosch Rexroth Hydraulic System:
Guarantees smooth operation and increased efficiency with advanced hydraulic technology.
- Siemens Electrical System:
Provides advanced control and precision, reducing downtime and maintenance. - Bohler Hardened Blades:
Delivers exceptional cutting performance and longevity, even under high-stress conditions. - Bosch Rexroth Hydraulic System:
Guarantees smooth operation and increased efficiency with advanced hydraulic technology.
Features and Uses
- Durable construction for heavy-duty use
- Automatic blade gap and rake adjustment
- Fast CNC back-gauge positioning
- High precision and reliable performance
- Easy-to-use touch screen display
- Premium European components
- Equipped with light guards at the back for enhanced safety
Functionality
- User-friendly touch screen display for quick setup
Facilitates easy and intuitive operation.
- CNC control for back-gauge, blade gap, and rake angle
Allows precise adjustments for improved accuracy.
Optional Equipment
- Pneumatic sheet support system
- Angular gauge, longer front support arms, laser cutting line
- Anti-twist system, light guard, front sheet feeding system
- Conveyor and stacking system, stainless cutting blades
- Oil cooler/heater, X1, X2 adjustable angle back gauge system
Facilitates easy and intuitive operation.
Allows precise adjustments for improved accuracy.
- Pneumatic sheet support system
- Angular gauge, longer front support arms, laser cutting line
- Anti-twist system, light guard, front sheet feeding system
- Conveyor and stacking system, stainless cutting blades
- Oil cooler/heater, X1, X2 adjustable angle back gauge system
Industries Using the Machine and Their Uses
- Metal Fabrication:
Precise cutting of metal sheets and plates - Automotive:
Production of automotive components - Aerospace:
Cutting of aircraft parts - Construction:
Fabrication of building materials - Shipbuilding:
Manufacturing of ship parts
Standard Equipment:

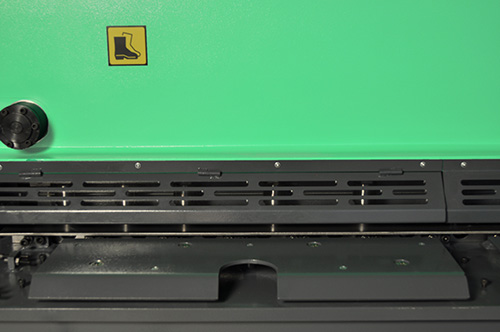

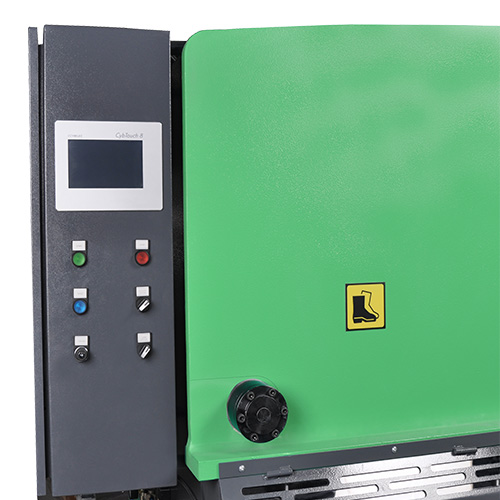

- Cybelec Cybtouch 8/ELGO P40T CNC controller
- CNC controlled blade gap and rake angle adjustment
- Motorized back gauge
- Hardened blades with 4 cutting edges
- Schneider electrical components
- Bosch Rexroth hydraulic system
- Cutting line illumination
- 1000 mm table extensions
- Front table with rollers
- 1 meter squaring arm
- Rear safety system with light guards
- Emergency stops and collapsible finger protection
- CE certified
| Specification | HBX 2050-13 | HBX 2550-13 | HBX 3050-13 | HBX 4050-13 |
|---|---|---|---|---|
| Item Number | 750144 | 750152 | 750160 | 750168 |
| Capacity [mm] | 2050 x 13.0 | 2550 x 13.0 | 3050 x 13.0 | 4050 x 13.0 |
| Mild Steel Capacity [mm] | 13 | 13 | 13 | 13 |
| Stainless Steel Capacity [mm] | 6 | 6 | 6 | 6 |
| Cutting Angle | 0.7° – 3.2° | 0.7° – 2.7° | 0.7° – 2.7° | 0.7° – 2.7° |
| Strokes/Minute | 11 | 7.5 | 7.5 | 10.8 |
| Back Gauge [mm] | 750 | 750 | 750 | 750 |
| Motorised Backgauge [Y/N] | Yes | Yes | Yes | Yes |
| Table Height [mm] | 900 | 900 | 900 | 900 |
| Motor [kW] | 18.5 | 18.5 | 18.5 | 15 |
| Voltage [V] | 400V, 3-Phase, 50Hz | 400V, 3-Phase, 50Hz | 400V, 3-Phase, 50Hz | 400V, 3-Phase, 50Hz |
| Tank Capacity [L] | 250 | 250 | 250 | 250 |
| Length [mm] | 2750 | 3250 | 3750 | 4700 |
| Width [mm] | 2600 | 2600 | 2660 | 2700 |
| Height [mm] | 2000 | 2000 | 2100 | 2200 |
| Net Weight [kg] | 6750 | 7500 | 8750 | 12500 |
High-performance 13 mm capacity guillotine shears with CNC control, automatic blade gap, and rake adjustment. Cutting lengths available from 2550 mm up to 4050 mm. Equipped with an optical rear safety system with light guards.
