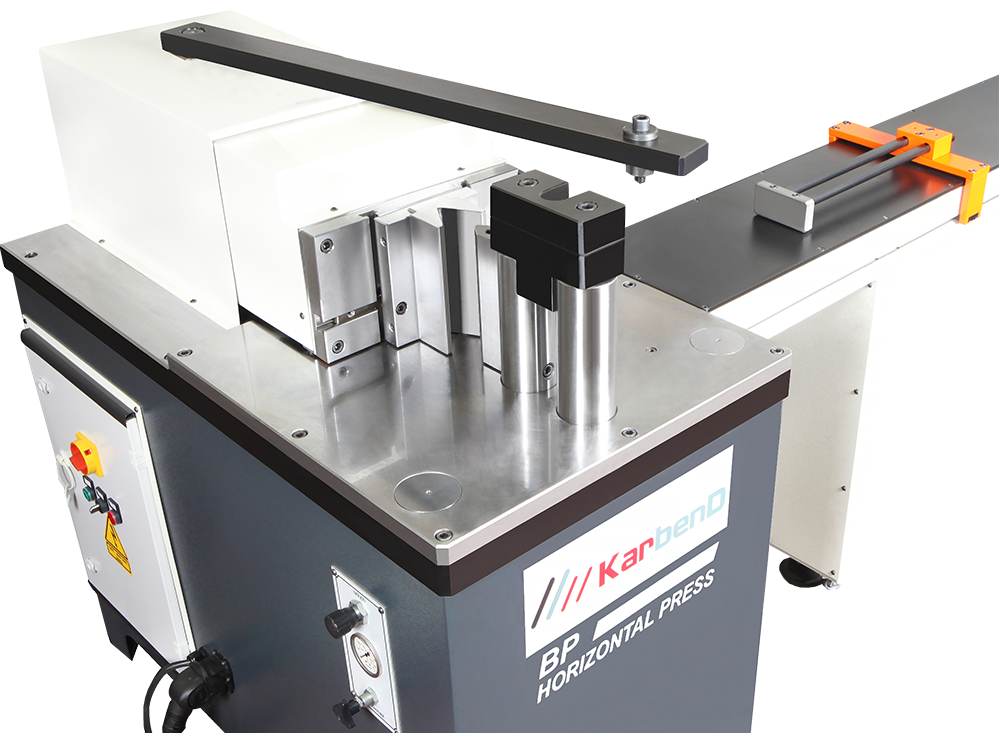

Horizontal Press Brake with NC Touchscreen Control with Automated Positioning Table

Product Code: HPB-NC-Control-PosTable

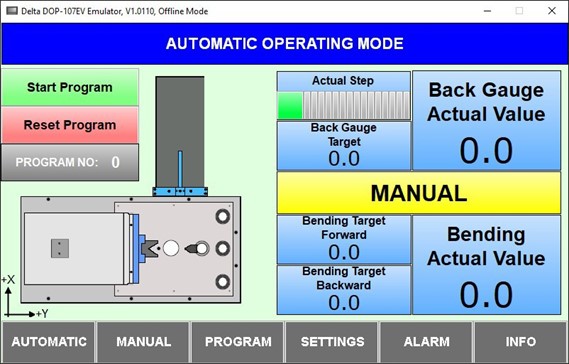

The Horizontal Hydraulic Press Machine, offered by WorkShopPress.co.uk, combines power and precision with its automated positioning table and NC touchscreen control system. The NC control provides storage for 20 different programs, with up to 15 steps per program. Operators can configure the length of the stroke, return position, and positioning stops, allowing for smooth sequential operations and reduced downtime.

Ideal for bending flat bars, round tubes, profiles, and sheet metal folding, this machine delivers a reliable solution for production and one-off custom bends. The programmable stops and positioning table, controlled directly through the touchscreen HMI, allow for maximum precision, making it perfect for industries where accuracy and repeatability are crucial. Additionally, a wide variety of tooling options are available, allowing for punching, crimping, and metal folding applications.

Designed for high-performance operations in manufacturing, metal fabrication, and construction industries, this hydraulic press is an essential piece of equipment for workshops needing efficiency, reliability, and flexibility.

Please contact for prices

Download Specification Sheet

Description
Additional Info

Capacity Table

Horizontal Press Brakes with Programmable Backgauge

Specification/Model	BP 10	BP 20	BP 30	BP 40	BP 50	BP 80	BP 100
Max Pressure (Tons)	10	20	30	40	50	80	100
NC Controller	20 Programs/15 Steps each	20 Programs/15 Steps each	20 Programs/15 Steps each	20 Programs/15 Steps each	20 Programs/15 Steps each	20 Programs/15 Steps each	20 Programs/15 Steps each
Flat material: (mm)	150 x 8	200 x 12	200 x 18	200 x 24	300 x 15	On Request	On Request
Round Tubes: (mm)	42 x 3.2	48 x 4.0	60 x 4.0	60 x 5.0	76 x 4.0	On Request	On Request
Max Stroke (mm)	185	185	285	285	285	285	285
Pin Dia. (mm)	60	80	80	80	90	105	105
Tool Height (mm)	150	200	250	250	300	300	300
Working Speed (mm/sec)	10	10	10	10	10	10	10
Return Speed (mm/sec)	10	10	10	10	10	10	10
Motor (kW)	1.1	2.2	3	4	5.5	10	10
Oil Capacity (Litres)	12	12	40	40	60	120	120
Net Weight (kg)	250	530	1050	1050	1450	1700	1700
Table Size (L x W mm)	450 x 900	480 x 1060	660 x 1250	660 x 1250	600 x 1250	750 x 1425	750 x 1425
Working Height (mm)	915	930	930	930	930	930	930
Length (mm)	900	1150	1250	1250	1400	1430	1430
Width (mm)	450	480	650	650	600	750	750
Height (mm)	1130	1200	1250	1250	1500	1450	1450

The Horizontal Hydraulic Press Machines from WorkShopPress.co.uk deliver precision, versatility, and ease of use for metalworking applications. Equipped with an advanced NC touchscreen control and automated positioning tables, these presses offer enhanced productivity for a wide range of bending, straightening, and punching operations. The NC touchscreen allows operators to store up to 20 programs with 15 steps each, enabling automated, repeatable workflows that reduce setup time and improve efficiency. Whether you’re bending flat bars, round tubes, or performing sheet metal folding, this machine provides the reliability and flexibility needed for small batch or high-volume production runs.

These horizontal presses are ideal for industries such as manufacturing, metal fabrication, and construction, where precise, repetitive operations are essential. Manual and program modes offer the adaptability needed to suit different production requirements, making these presses a powerful asset in any workshop.

Features

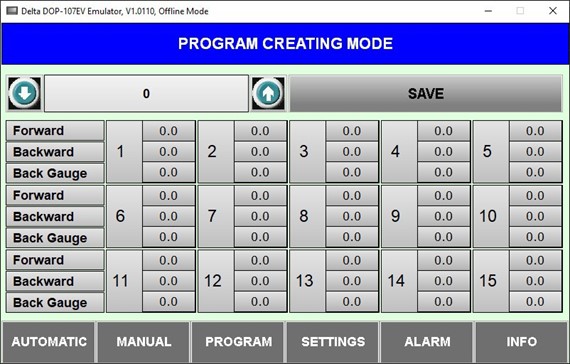

NC Controller Holds 999 Programs, 15 Steps Each
Adjustable Piston Stroke and Return by Step

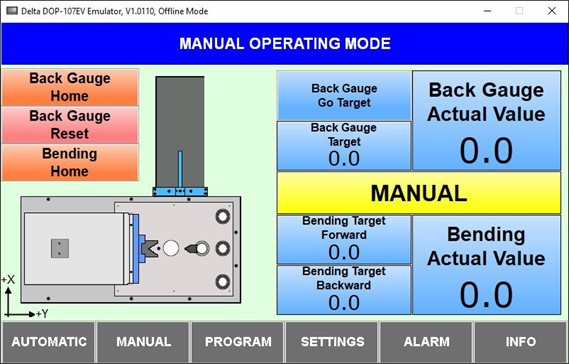

Manual and Automatic Program Modes
Flow Adjustment Valve for Pressure
Pressure Manometer
Back Gauge

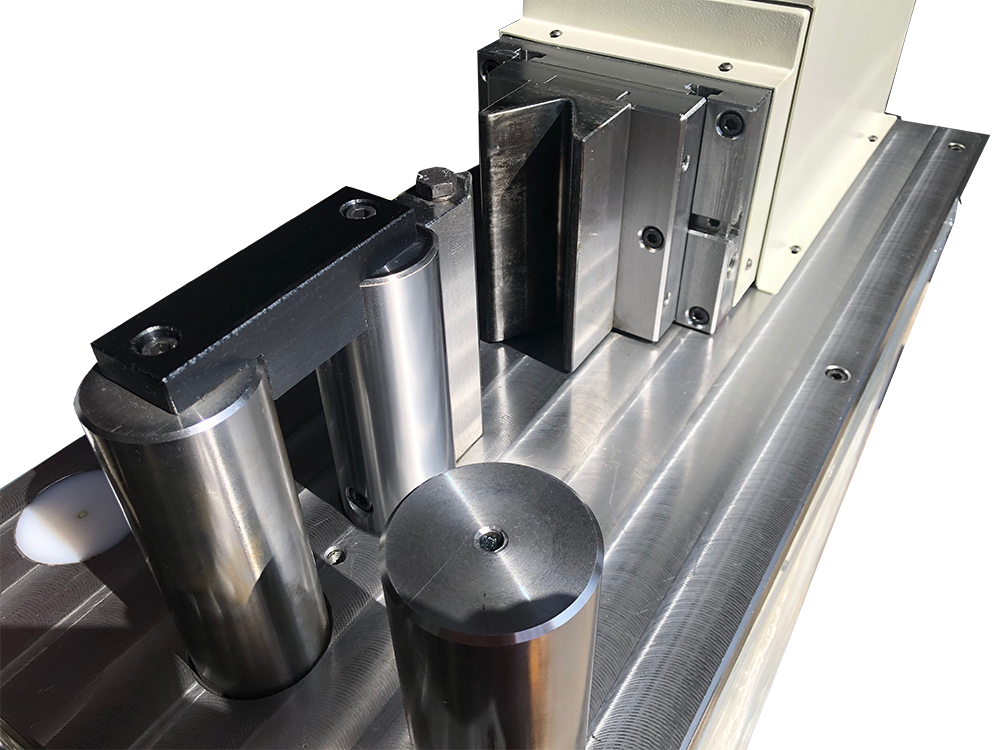

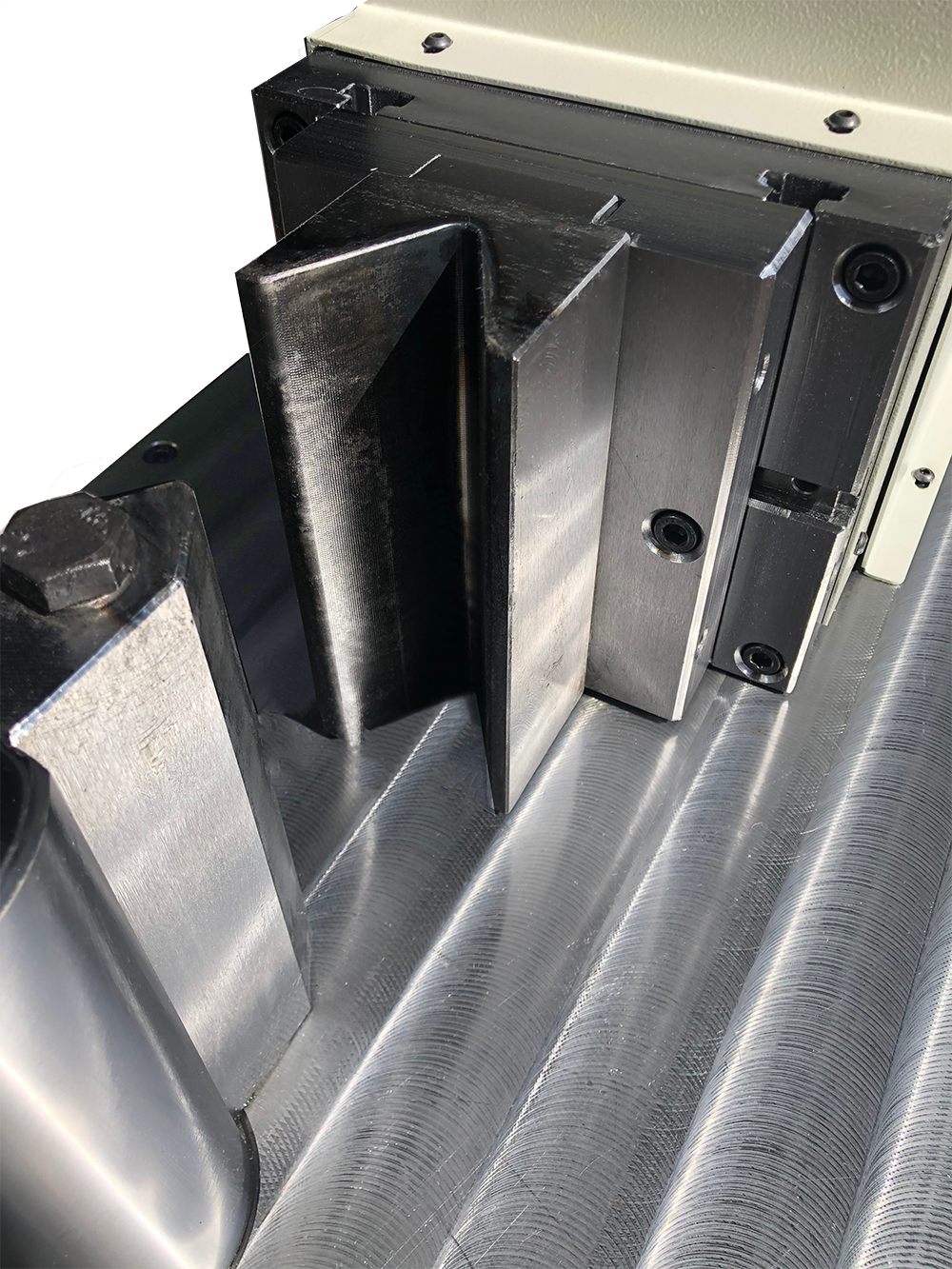

V-Die (5 mm Radius)
V-Die Receptor (86 mm Opening)

Optional Accessories

Tool Set for Bending Tubes
Tool Set for Bending Flat Bar the Hard Way
Tool Set for Straightening Beams and Sections
Tool for Bending Sheet Metal into Specific Shape
Punching Tools
Shearing Tools

Industries Using the Machine and Their Uses

Metal Fabrication: Bending, punching, and cutting of profiles, tubes, and sheets
Construction: Production of brackets, clips, and reinforcements for structural applications
Manufacturing: High-volume, repeatable bending and straightening processes
Automotive: Creation of custom parts and components for vehicle frames and chassis
Aerospace: Precision bending and punching for lightweight metal components

FAQ button for all product categories offered by The Workshop Press Company UK — **Horizontal Press Brake FAQs**

Click HERE

Horizontal Press Break Charts

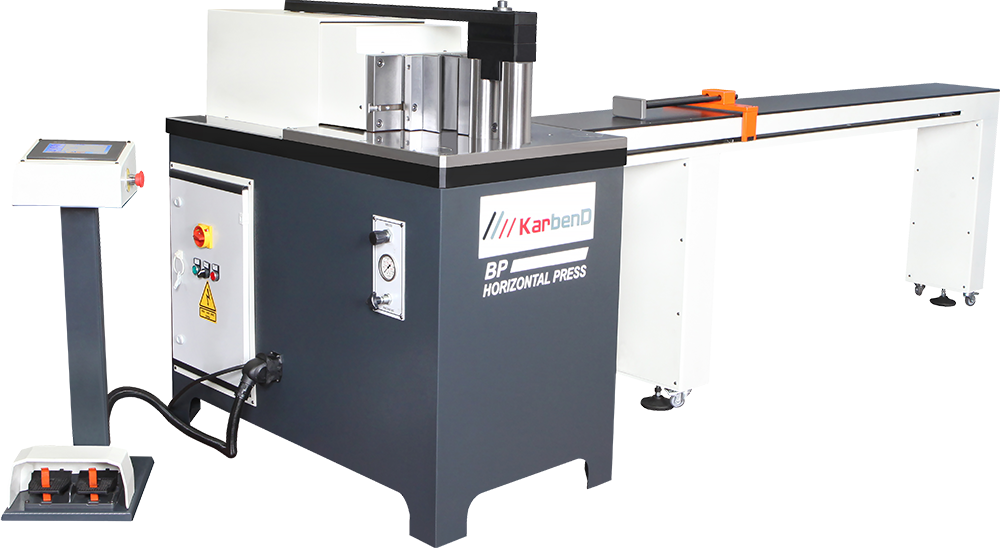

Horizontal Hydraulic Press with automated positioning table and NC touchscreen control for precision metalworking applications, ideal for bending, straightening, punching, and shearing.
