Industrial Pillar Drills Category • Bench & Floor Models • Manual/Automatic • Drilling 8 to 35 mm • Tapping to M50 • MT5
Product Code: Pillar-Drills-Industrial-GroupDiscover the precision and reliability of our Pillar Drills and Tapping Machines, designed for versatility in metal fabrication. With models capable of drilling diameters ranging from 8 mm to 80 mm and tapping capacities from M5 to M50, these machines offer robust performance for various industrial applications. Engineered with V-Belt, Gear, and Direct drive mechanisms, our machines ensure consistent power delivery and optimal efficiency.
Please contact for prices
- Description
- Additional Info
Our Pillar Drills and Tapping Machines are built to meet the rigorous demands of metal fabrication industries. These machines offer a range of drilling diameters from 8 mm to 80 mm and tapping capacities from M5 to M50, ensuring versatility for different tasks. The models feature manual feed mechanisms for both drilling and tapping, providing users with control and precision. With options for V-Belt, Gear, and Direct drive mechanisms, these machines are designed for efficiency and durability. The fixed table and rotating headstock enhance operational flexibility, while the robust motor power ranges from 0.54 kW to 5.6 kW, suitable for various workloads.
Technical Specifications
- Drilling Diameters: 8 mm to 80 mm
- Tapping Capacities: M5 to M50
- Drive Mechanisms: V-Belt, Gear, Direct, Belt/Gear, Auto Electro-Mag
- Motor Power: 0.54 kW to 5.6 kW
- Feed Mechanisms: Manual, Automatic, Auto Electro-Mag, Automatic Mechanical
- Column Diameter: 70 mm to 220 mm
- Throat Depth: 70 mm to 220 mm
- Spindle to Table Distance: Max 1260 mm
- Table Type: Fixed with rotating headstock, Variable
- Spindle Speed Range: Variable, 4 Ranges, 8*
- Spindle Taper: MT3 to MT5, B12, B16
- Machine Weight: 44 kg to 910 kg
- Coolant System: Available on select models
- Lighting: Integrated on select models
- Stroke Length: 60 mm to 220 mm
Features and Uses
- Precision drilling and tapping for various metal fabrication tasks
- Manual, automatic, and auto electro-magnetic feed mechanisms for control and precision
- Versatile drive options: V-Belt, Gear, Direct, Belt/Gear, Auto Electro-Mag
- Robust motor power suitable for different workloads
- Fixed table with a rotating headstock for enhanced flexibility
Industries Using the Machine and Their Uses
- Manufacturing: Component drilling and tapping
- Automotive: Engine part fabrication
- Aerospace: Precision component manufacturing
- Construction: Steel structure fabrication
- Metalworking Shops: General metal processing and fabrication
Series and Their Capacity Ranges

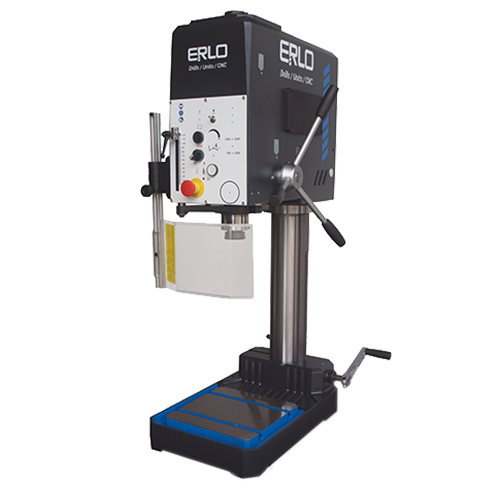

S Series – V-Belt Drive – Manual Tapping
- Drilling Capacity: 10 mm to 30 mm
- Tapping Capacity: M14 to M25
- Motor Size: 0.68 kW to 1.2 kW
SE Series – Gear Drive – Manual Tapping
- Drilling Capacity: 25 mm to 30 mm
- Tapping Capacity: M22 to M25
- Motor Size: 1.1 kW to 1.5 kW
SEA Series – Gear Drive – Manual Tapping
- Drilling Capacity: 25 mm to 30 mm
- Tapping Capacity: M22 to M25
- Motor Size: 1.1 kW to 1.5 kW
SH Series – V-Belt Drive – Automatic Tapping
- Drilling Capacity: 18 mm to 25 mm
- Tapping Capacity: M14 to M25
- Motor Size: 1.1 kW to 1.5 kW
SHE Series – Gear Drive – Automatic Tapping
- Drilling Capacity: 30 mm
- Tapping Capacity: M25
- Motor Size: 1.5 kW
FT Series – Direct Drive – Manual Tapping
- Drilling Capacity: 8 mm to 15 mm
- Tapping Capacity: M5 to M8
- Motor Size: 0.54 kW
C Series – V-Belt Drive – Manual Tapping
- Drilling Capacity: 18 mm to 30 mm
- Tapping Capacity: M14 to M25
- Motor Size: 0.68 kW to 1.2 kW
TS Series – Gear Drive – Manual Tapping
- Drilling Capacity: 25 mm to 30 mm
- Tapping Capacity: M22 to M25
- Motor Size: 1.1 kW to 1.5 kW
TSA Series – Gear Drive – Automatic Tapping
- Drilling Capacity: 25 mm to 45 mm
- Tapping Capacity: M22 to M35
- Motor Size: 1.1 kW to 2.25 kW
Series and Their Capacity Ranges (cont.)
TSA Series – Gear Drive – Automatic Tapping
- Drilling Capacity: 25 mm to 45 mm
- Tapping Capacity: M22 to M35
- Motor Size: 1.1 kW to 2.25 kW
TSE Series – Gear Drive – Auto Electro-Mag Tapping
- Drilling Capacity: 32 mm to 45 mm
- Tapping Capacity: M28 to M35
- Motor Size: 1 kW to 2.25 kW
TCA Series – Gear Drive – Automatic Mechanical Tapping
- Drilling Capacity: 40 mm to 50 mm
- Tapping Capacity: M33 to M36
- Motor Size: 2.25 kW to 3 kW
TCE Series – Auto Electro-Mag Drive & Tapping
- Drilling Capacity: 40 mm to 70 mm
- Tapping Capacity: M33 to M50
- Motor Size: 2.3 kW to 5.6 kW
TH Series – Belt/Gear Drive – Auto Electro-Mag Tapping
- Drilling Capacity: 40 mm to 80 mm
- Tapping Capacity: M36 to M42
- Motor Size: 3 kW to 4.1 kW
V Series – V-Belt Drive – Manual Tapping
- Drilling Capacity: 32 mm to 40 mm
- Tapping Capacity: M24 to M32
- Motor Size: 1.4 kW to 3 kW
G Series – Gear Drive – Manual Tapping
- Drilling Capacity: 32 mm to 50 mm
- Tapping Capacity: M24 to M35
- Motor Size: 1.5 kW to 3 kW
TF Series – Auto Electro-Mag Drive & Tapping
-
- Drilling Capacity: 35 mm
- Tapping Capacity: M35
- Motor Size: 2.2 kW
Pillar Drills and Tapping Machines provide precise and reliable performance, with drilling capacities from 8 mm to 80 mm and tapping capacities from M5 to M50. Ideal for various industrial applications.
