Product Code: MRM-1050-XXXDiscover the MRM 1050 Series Plate Rollers, designed for high efficiency and precision in metal bending. With models ranging from 7.0 mm to 10.0 mm mild steel capacity, these machines are built for durability and ease of use. Ideal for working with aluminum, air conditioning channels, advertising panels, and sheet metal covers, the MRM 1050 series ensures optimal performance for various industrial applications.
Please contact for prices
- Description
- Additional Info
The MRM 1050 Series Plate Rollers feature a robust construction with solid steel gable-ends and a modern soft radius design. These machines accommodate sheet sizes from 1050 mm in width and up to 10.0 mm in thickness for mild steel. The independently mounted three-roll design enhances productivity with easy roll adjustments. Both upper and lower rolls are driven to prevent material marking through slipping. Additionally, the high polished finish protects pre-finished components from damage, making these rollers perfect for handling sensitive materials.
Key features include easy removal of the finished tube by swinging out the top roll, motorized adjustment of the back roll, and a mobile control panel with a three-position foot pedal, including an emergency stop.
Technical Specifications
- Working Length: 1050 mm
- Mild Steel Capacity: 7.0 mm to 10.0 mm
- Prebend: 6 mm to 9 mm
- Minimum Bending Diameter: 150 mm to 285 mm
- Rolls Diameter: 130 mm to 190 mm
- Rolls Speed: 6.0 m/min to 6.5 m/min
- Motor Power:2.00 / 0.75 kW to 3.75 / 1.5 kW
- Dimensions (L x W x H):2220 x 660 x 1050 mm to 2520 x 800 x 1200 mm
- Weight: 1250 kg to 2300 kg
Features and Uses

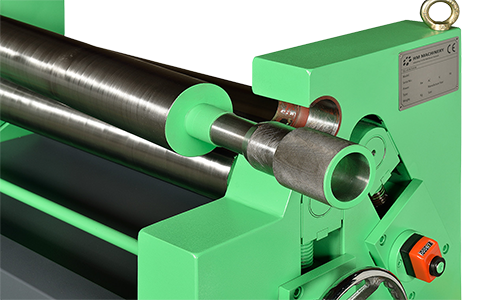

- Easy Removal of Finished Tube: Swinging out the top roll
- Solid Steel Gable-Ends: Modern design
- High Polished Finish: Prevents damage to sensitive materials
- Ideal for: Aluminum, air conditioning channels, advertising panels, and sheet metal covers
- Motorized Adjustment: Back roll with mm counter

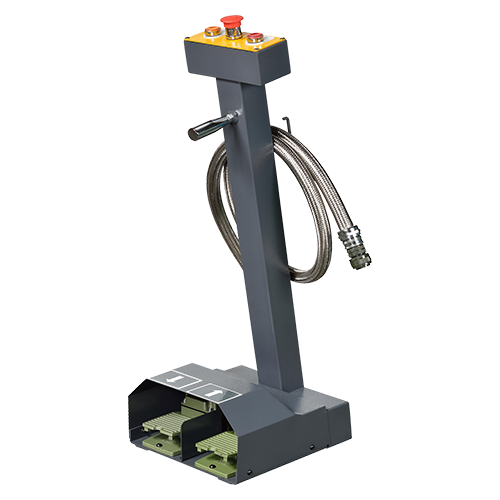

- Mobile Control Panel: 3 position foot pedal and emergency stop
- Compliance: Built to comply with current EC Safety Directives (CE marked)
Industries Using the Machine and Their Uses
- Metal Fabrication: Sheet bending and forming
- HVAC: Air conditioning channel production
- Advertising: Panel and sign manufacturing
- Sheet Metal Covers: Precision bending for covers and enclosures
Standard Equipment
- Asymmetrical Initial Pinch Rolls
- Upper and Lower Rolls: Driven via hardened gear system
- Standard Alloy-Steel Rolls:
- Motorized Adjustment: Back roll with mm counter for accurate bending
- Solid Steel Gable-Ends:
- Top Roll: To slip with mechanical manual drop-end
- Mobile Control Panel: 3 position foot pedal (including emergency stop)
- Conical Bending Device:
- Precision Bending: Through heavy-duty brake motor
- Compliance: Built to comply fully with current EC Safety Directives (CE marked)
Optional Equipment
- Digital Read-Out: For rear (back) roll
- Hardened Rolls:
| Specification | MRM 1050-130 | MRM 1050-150 | MRM 1050-170 | MRM 1050-190 |
|---|---|---|---|---|
| Article Number | 14110700 | 14110710 | 14110720 | 14110730 |
| Working Length [mm] | 1050 | 1050 | 1050 | 1050 |
| Mild Steel Capacity [mm] | 7.0 | 8.0 | 9.0 | 10.0 |
| Prebend (mm) | 6 | 7 | 8 | 9 |
| Min. Bending Diameter [mm] | 195 | 225 | 255 | 285 |
| Rolls Diameter [mm] | 130 | 150 | 170 | 190 |
| Rolls Speed [m/min] | 6.5 | 6.0 | 6.0 | 6.0 |
| Motor [kW] | 2.00 / 0.75 | 3.75 / 1.1 | 3.75 / 1.1 | 3.75 / 1.5 |
| L x W x H | 2220 x 660 x 1050 | 2220 x 680 x 1080 | 2320 x 700 x 1100 | 2520 x 800 x 1200 |
| Weight [kg] | 1250 | 1450 | 1630 | 2300 |
