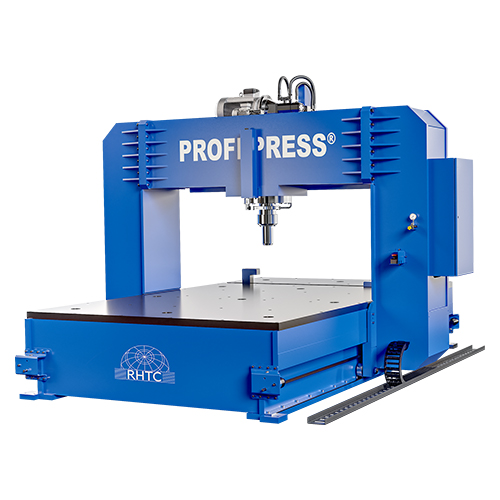

160 Ton Motorised Portal Press – PPTLM Series • RHTC
Product Code: PPTLM160The 160 Ton Motorised Portal Press - PPTLM-160 is specifically designed for straightening large and heavy structures and sheets. Featuring a movable frame and cylinder, this gantry press offers precise access to multiple pressing and straightening points. The frame's longitudinal displacement is powered by a frequency inverter and cogged belt, while the lateral cylinder movement is fully motorised for enhanced control.
With a large lower table (1,800 x 3,000 mm), this press allows for easy loading and unloading of large parts. Operation is controlled via a wireless remote and includes safety features like an emergency stop. Built to meet CE health and safety standards, this Profi Press portal press delivers exceptional durability, reliability, and efficiency.
Contact us today for more information or to request a custom-made hydraulic portal press tailored to your specific needs!
Please contact for prices
- Description
- Additional Info
The 160 Ton Motorised Portal Press – PPTLM-160 is a high-capacity gantry press built for industrial applications requiring precision and versatility.
Key Benefits:
- Movable Frame and Cylinder: Easily access different pressing and straightening points.
- Advanced Precision: Longitudinal displacement via frequency inverter and cogged belt ensures accurate sliding.
- Large Table: A spacious table (1,800 x 3,000 mm) accommodates large sheets and structures.
- Wireless Control: Operate the press remotely with integrated safety features like emergency stop.
- CE Compliance: Meets essential health and safety requirements with a two-year warranty included.
This press can be customized with larger tables or additional features upon request.
Technical Specifications
- Force: 160 tons
- Motor Power: 4 kW
- Working Speed: 3 mm/sec
- Approaching Speed: 9.9 mm/sec
- Return Speed: 15.4 mm/sec
- Maximum Pressure: 250 bar
- Piston Stroke: 460 mm
- Table Size: 3000 x 1800 mm
- Horizontal Light: 1850 mm
- Vertical Light: 850 mm
- Headstock Displacement: 1150 mm
- Frame Displacement: 2000 mm
- Working Height: 700 mm
- Total Length: 3500 mm
- Total Width: 2800 mm
- Overall Height: 2700 mm
- Weight: 8700 kg
Key Features
- Motorised movable portal
- Motorised movable cylinder
- Cylinder stroke is easy to regulate with the end-stroke switches
- Selector for manual or semi-automatic operation
- Pressure regulator and manometer
- Wireless remote control
Optional Accessories
- Milling flat table (3000 x 1800 x 75 mm)
- Small cylinders fitted in the lower table to lift pieces, connected to a second hydraulic group
- Additional extension for the cylinder
- Larger table size
Industries Using the Machine
- Railway Industry: Maintenance, fabrication, production, testing
- Shipbuilding Industry: Structural fabrication, repair, component testing
- Aerospace Industry: Component forming, maintenance, stress testing
- Manufacturing: General fabrication, assembly, material testing
Benefits of Motorised Portal Presses
- Motorised roll frame hydraulic presses for heavy-duty applications
- Easy-to-position motorized gantry for precise alignment
- High-capacity presses: 160 Ton, 220 Ton, 300 Ton models available
- Double-acting cylinders for fast retraction and efficiency
- Integrated pressure gauges for enhanced safety and control
- Two-speed hydraulic pump
Benefits of Motorised Portal Presses (cont.)
- Low maintenance design with minimal downtime
- Versatile press suitable for various fabrication and production tasks
- Improved productivity with reduced loading and unloading time</l

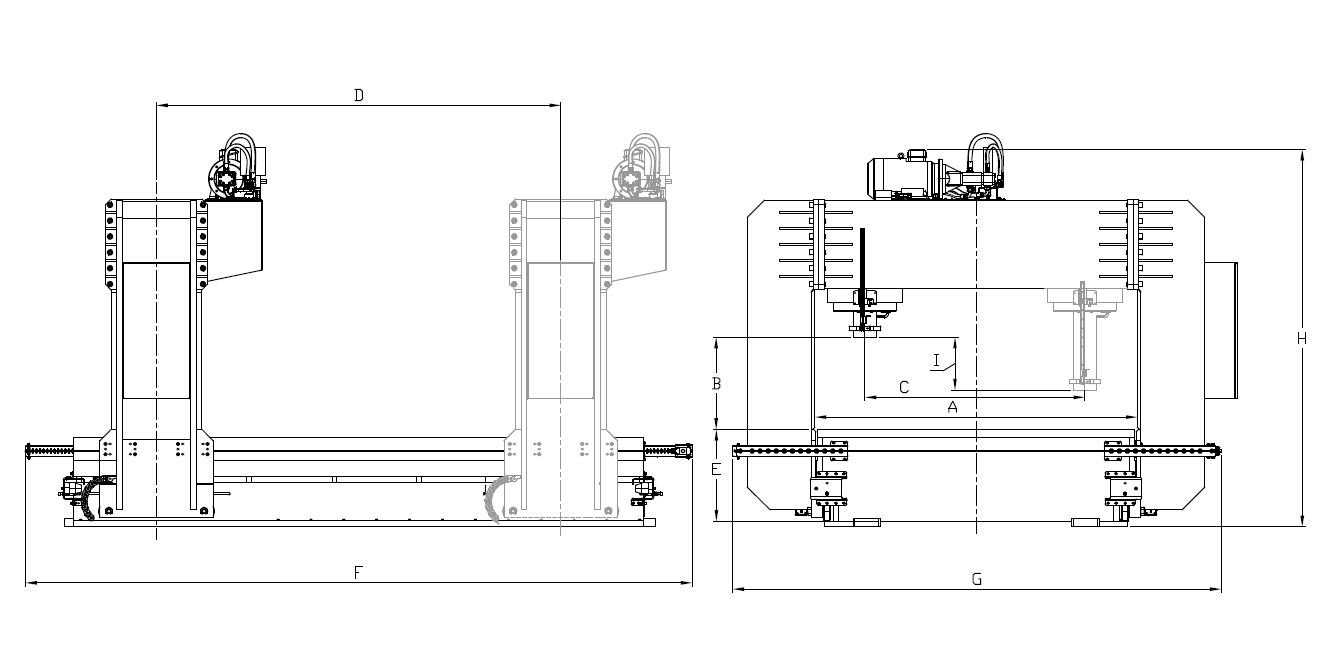

PPTLM-160 Dimensions
- A: 1850 mm
- B: 850 mm
- C: 1150 mm
- D: 2000 mm
- E: 700 mm
- F: 3500 mm
- G: 2800 mm
- H: 2700 mm
- I: 460 mm
The PPTLM-160 is a 160-ton motorised portal press for straightening large, heavy structures. Featuring a movable frame and cylinder with CE-certified safety.
