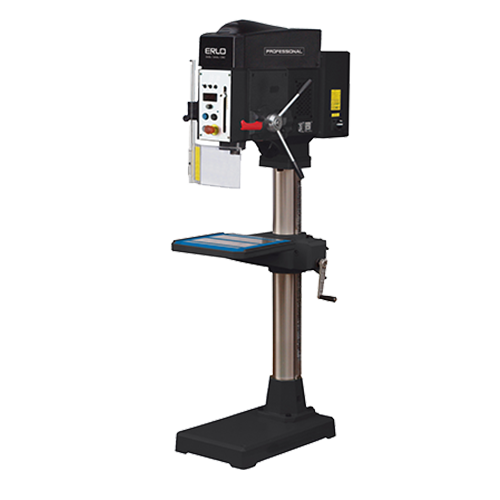

ERLO VP.35 Belt Driven Column Pillar Drill
Product Code: VP.35Enhance the capabilities of your workshop with our V and VP Series Professional Pillar Drills, designed specifically for manufacturing engineers seeking unrivaled precision and reliability. The V Series, including models V.32, V.35, and V.40, offers impressive drilling capacities in mild steel, from 32mm up to 40mm, effortlessly carving through materials with V-Belt and Belt Variator transmissions for smooth and consistent performance.
The VP Series raises the bar with the VP.35 and VP.40 models, featuring advanced automation with feed systems and a mechanical clutch for seamless operation. Variable speeds cater to all your precise engineering requirements, permitting meticulous control and impeccable results.
Constructed with the superior craftsmanship demanded by industry professionals, these pillar drills boast robust spindle cones, generous spindle strokes, and ample working clearances to handle even the most challenging projects. CE-certified and built with precision, every drill represents the apex of workshop tooling, combining power with ergonomic design for the utmost operational ease.
Our V and VP Series are more than just tools; they're a tribute to engineering excellence—empowering innovators and problem-solvers to push the boundaries of what's possible. Discover the fusion of tradition and innovation with our series and redefine the limits of your manufacturing achievements.
Experience the merge of form, function, and futuristic engineering—choose our Professional Pillar Drills and make every hole count.
Original price was: £5,025.00.£4,850.00Current price is: £4,850.00. (£4,850.00 ex VAT)
- Description
- Additional Info
The ERLO VP.35 Belt Driven Column Pillar Drill is designed for advanced metalworking, with a 35mm drilling capacity and M27 tapping capacity. Featuring automatic feed and automatic tapping, this belt-driven drill provides smooth operation for high-precision tasks. Equipped with a powerful 3 kW motor and requiring 400V, 3-phase power, the VP.35 is perfect for heavy-duty industrial applications where precision and reliability are essential.
Specifications / Model: VP.35
- Drilling (mm):
35 - Tapping (mm):
M27 - Transmission:
Belt Variator - Speed Range & Number (rpm):
100 to 2000 - Feed:
Automatic - Feeds Number:
3 - Clutch:
Mechanical - Motor (hp):
4 - Taper:
MT4 - Spindle Stroke (mm):
150 - Spindle to Column (mm):
300 - Spindle to Table (mm):
Min 90 / Max 890 - Spindle to Base (mm):
1250 - Column diameter (Ø mm):
125 - Table with T-Slots (mm):
400 x 420 - Base (mm):
400 x 655 - Base with T-Slots (mm):
492 x 655 - CE Certified:
Yes - Weight Net/Gross (kg):
360 / 410 - Packaging Dimensions (mm):
2300 x 600 x 1100
Accessory and Options Listing
- Automatic Longitudinal Displacement:
Motorized Feed Box - Automatic Tapping System by Lead Screw:
Includes one tapping pitch - Automatic Tapping System by Lead Screw:
With Bracing Device - Automatic Tool Adjustment:
For Cone ISO - Automatic Transversal Displacement:
By motorized feed box - Auxiliary Table 1000 x 280:
STROKE X=700 / Y=250 mm - Auxiliary Table 340 x 190:
STROKE X=220 / Y=140 mm - Auxiliary Table 430 x 240:
STROKE X=280 / Y=180 mm - Auxiliary Table 600 x 240:
STROKE X=400 / Y=180 mm - Auxiliary Table 800 x 280:
STROKE X=500 / Y=250 mm - Base Cabinet:
For Benchtop Models - Base Cabinet with 2 Shelves:
For Benchtop Models - Base Cabinet with Door and Shelves:
For Benchtop Models - Collet Holder Set:
With Key, Box and Locking Nut - Column Enlargement:
To 200 mm - Column Enlargement:
To 250 mm - Coolant System
- Cycles Counter
- Depth Digital Reader
- DRO – 1 Axis:
In Command Plate by Articulated Arm - DRO – 2 Axis:
In Command Plate by Articulated Arm - DRO – 3 Axis:
In Command Plate by Articulated Arm - Electronic Speed Controller and DRO
- Fixed Fixture Jig with 150 mm Opening:
160mm Jaws - Fixed Fixture Jig with Opening 116 mm:
125 Jaws - Fixed Fixture Jig with Opening 160 mm:
125 Jaws - Fixed Fixture Jig with Opening of 116 mm:
Jaws width 105 mm - Fixed Fixture Jig with Opening of 157 mm:
Jaws width 125 mm - Fixed Fixture Jig with Opening of 190 mm:
Jaws width 150 mm - Fixed Intermediate Table
- Fixed Table 850 x 600:
For Models - Foot Pedal:
For Cycle Start - Foot Switch Emergency Stop
- Foot Switch for Spindle Turning:
With Sensing for Tapping - Handwheel for Fine Sensitive Feed
Accessory and Options Listing (cont.)
- Hydroblock Equipment
- Integral Drilling Cycle:
For Tubes and Profiles - ISO 30 Spindle
- ISO 40 Spindle
- Lead Screw:
Special Pitch - Lead Screw:
Standard Pitch - Lighting Equipment:
For Work Area - Manual Tapping System
- Motor for Replacement:
With 750/1500 RPM - Motorized Table with Fixed Support:
Fixed Table 850 x 600 - Motorized Table with Rotating Support
- Multi-Spindle Headstock
- Multi-Spindle Headstock Guide
- Pneumatic Balancing
- Quick Closing and Opening Vice:
With 125 mm Opening - Quick Closing and Opening Vice:
With 80 mm Opening - Quick Lock Drill Chuck:
1 to 16 mm MT3 - Quick Lock Drill Chuck:
1 to 16 mm MT4 - Quick Lock Drill Chuck:
1 to 16 mm MT5 - Rapid Approach and Return
- Reduced Feeds:
(50% Standard Range) - Reduction Tapers:
MT2 to MT1 - Reduction Tapers:
MT3 to MT2 MT1 - Reduction Tapers:
MT4 to MT3 MT2 MT1 - Reduction Tapers:
MT5 to MT4 MT3 MT2 MT1 - Reversible Rotating Table with Vice
- Reversible Tap Holder:
Capacity M.10 to M.28 - Reversible Tap Holder:
Capacity M.3 to M.12 - Reversible Tap Holder:
Capacity M.6 to M.20 - Rotating Fixture Jig with Opening 116 mm:
Jaws 105 mm - Rotating Fixture Jig with Opening 157 mm:
Jaws 125 mm - Rotating Fixture Jig with Opening 190 mm:
Jaws 110 mm - Rotating and Tilting Table
- Rotating Base with 150 mm Opening:
160 mm Jaws - Rotating Intermediate Table
- Rotating Table
- Self Center Vice with 110 mm Opening:
128 mm Width - Table with Automatic Horizontal Feed:
With Motorized Feed - Tap Holder Locking Nut
Erlo: Tradition and Innovation in Drilling and Tapping Machines
Erlo is a leading manufacturer of drilling and tapping machines, with over 50 years of experience in the industry. ERLO is known for reliable and durable machines, which are made with high-quality materials and components. ERLO’s machines are also easy to use and maintain, making them a good choice for machinists and metal fabricators of all levels of experience.
In addition to the standard range of drilling and tapping machines, also offered are customized solutions for specific applications are designed with a deep understanding of the custoer’s needs and the machine designs meet those needs perfectly.
It is the belief that tradition and innovation go hand-in-hand and ERLO has a committment to providing their customers with the latest technology and also value the traditional values of craftsmanship and quality.
If you are looking for a reliable and innovative drilling and tapping machine, Erlo is the perfect choice for you. Contact us today to learn more about our products and services.
ERLO products are proudly sold by The Workshop Press Company UK based in Kenilworth, Warwickshire.
